0022012085

2.54毫米（ .100 ）间距KK®压接端子外壳，摩擦减速， 8电路，使用与4809 2.54mm .100 Pitch KK® Crimp Terminal Housing, Friction Ramp, 8 Circuits, Use with 4809

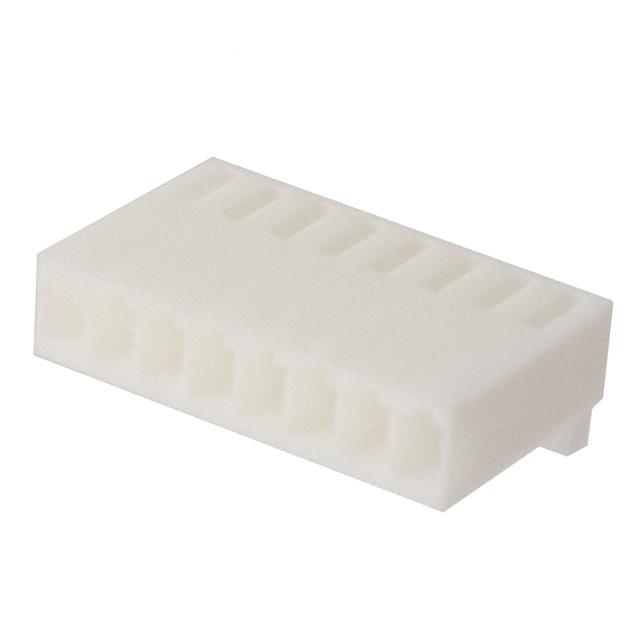

Securely make a connection between a board and socket using this discrete wire housing developed by . This F connector has 8 F contacts. It has a maximum voltage rating of 250 V. This is a 1-row connector. It has a female type gender. Its pitch is 2.54 mm. It has a straight body orientation. This device has a maximum current rating of 4 A/contact. 0022012085 is housed in natural polyamide 6/6. Its wire is 22-28 AWG. This rectangle connector has an operating temperature of 0 to 75 °C. This product is 20.78 mm long and 12.7 mm.
