0022012025

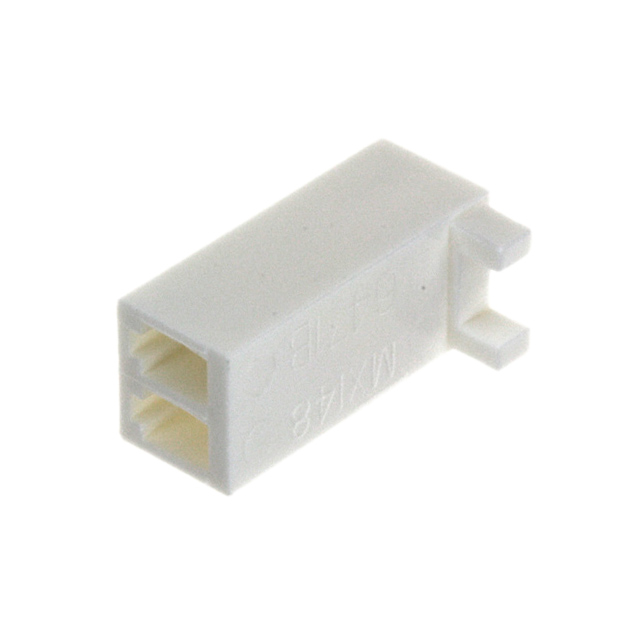

2.54毫米（ .100 ）间距KK ？压接端子箱，摩擦斜坡， 2电路，使用带有4809 2.54mm .100 Pitch KK® Crimp Terminal Housing, Friction Ramp, 2 Circuits, Use with 4809

This discrete wire housing from can also provide a locking mechanism for conditions where a lot of mechanical jarring is seen. This F connector has 2 F contacts. It has a maximum voltage rating of 250 V. This is a 1-row connector. Its pitch is 2.54 mm. It has a female type gender. It has a straight body orientation. This device has a maximum current rating of 4 A/contact. 0022012025 is housed in white polyamide 6/6. This rectangle connector has an operating temperature of 0 to 75 °C. Its wire is 22-28 AWG. This product is 5.54 mm long and 12.7 mm.
