0039012045

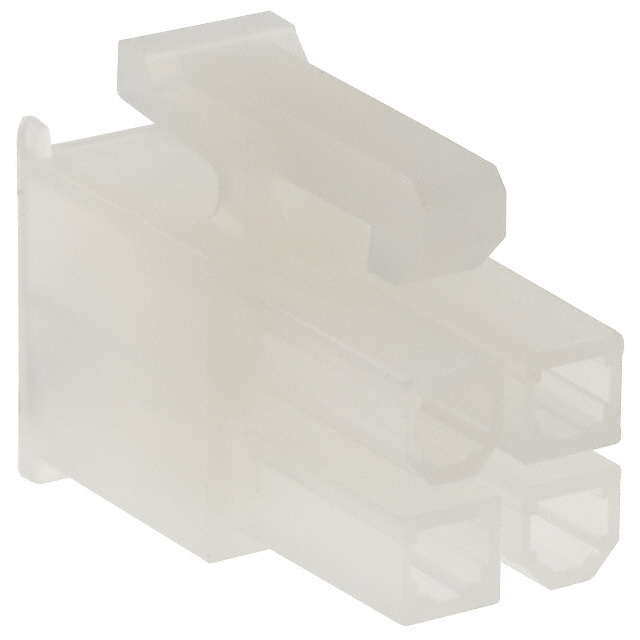

4.20毫米（ .165 “ ）间距迷你适合小™插座外壳，双排， UL 94V- 0 ， 4电路 4.20mm .165" Pitch Mini-Fit Jr.™ Receptacle Housing, Dual Row, UL 94V-0, 4 Circuits

Do you need a solution for housing discrete wires because a direct socket to board linkage is not functional? Then this discrete wire housing from is perfect for you! This F connector has 4 F contacts. It has a straight body orientation. This is a 2-row connector. It has a female type gender. Its pitch is 4.2 mm. It has a maximum voltage rating of 600 VDC|600VAC. This device has a maximum current rating of 13 A/contact. This product is 9.6 mm long, 15.1 mm tall and 19.6 mm deep. This rectangle connector has an operating temperature of -40 to 105 °C. 0039012045 is housed in ivory nylon 6/6.
