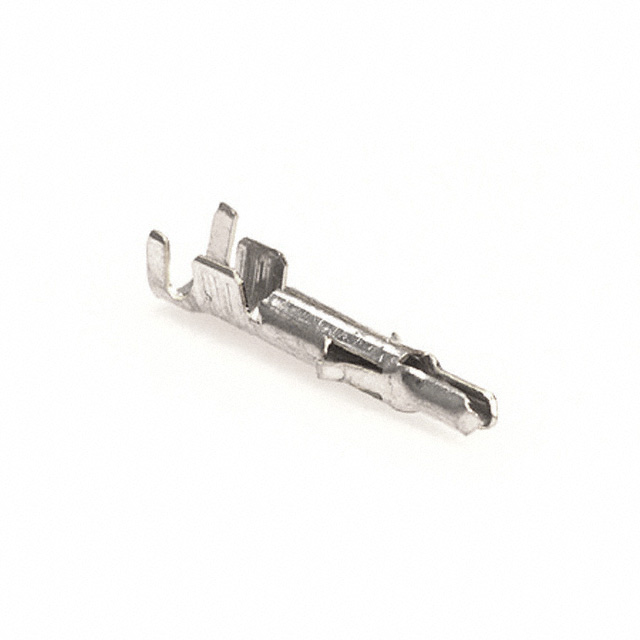

0002082004图片1

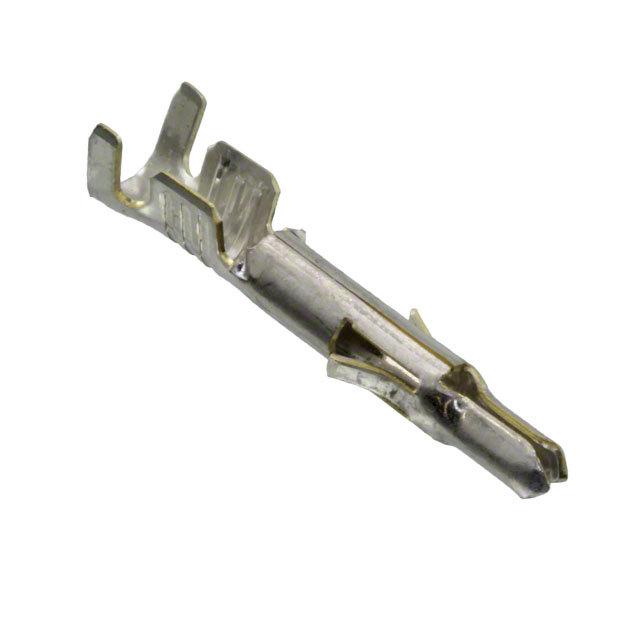

0002082004图片2
0002082004图片3
0002082004图片4
0002082004概述

MLX压接端子42023 , 14-20 AWG ,包锡(Sn ) MLX Crimp Terminal 42023, 14-20 AWG, Bag Tin Sn

功率 开叉引脚 触点 锡 14-20 AWG 压接


得捷:
CONN SPLIT PIN 14-20AWG CRMP TIN


立创商城:
0002082004


贸泽:
Pin & Socket Connectors MLX .084" CRMP 14-20 AWG MA SN


艾睿:
This 0002082004 connector contact from Molex is designed to perform within the rated voltage and current specifications to provide a solid connection. It has a straight body orientation. This device has a maximum current rating of 13.5 A. This has a Connector Headers and PCB Receptacles connector. It uses the crimp termination method. This product is 20.1 mm long, 4.32 mm tall and 4.45 mm deep. This connector contact has a minimum operating temperature of -55 °C and a maximum of 105 °C. Its wire is 14-20 AWG.


安富利:
Contact PIN Crimp ST Cable Mount Bag


Chip1Stop:
Contact PIN Crimp ST Cable Mount Bag


Verical:
Contact PIN Crimp ST Cable Mount 14-20AWG MLX™ Bag


0002082004中文资料参数规格
技术参数

触点数 1

极性 Male

线规 14AWG ~ 20AWG

接触电阻 3.5 mΩ

额定电流Max 13.5 A

工作温度Max 105 ℃

工作温度Min -55 ℃

接触电阻Max 3.5 mΩ

封装参数

封装 -

外形尺寸

高度 4.32 mm

封装 -

物理参数

触点材质 Brass

其他

产品生命周期 Unknown

包装方式 Bag

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0002082004
型号: 0002082004
制造商: Molex 莫仕
描述:MLX压接端子42023 , 14-20 AWG ,包锡(Sn ) MLX Crimp Terminal 42023, 14-20 AWG, Bag Tin Sn
替代型号0002082004
型号/品牌 代替类型 替代型号对比

0002082004

Molex 莫仕

当前型号

当前型号

0002082003

莫仕

完全替代

0002082004和0002082003的区别
