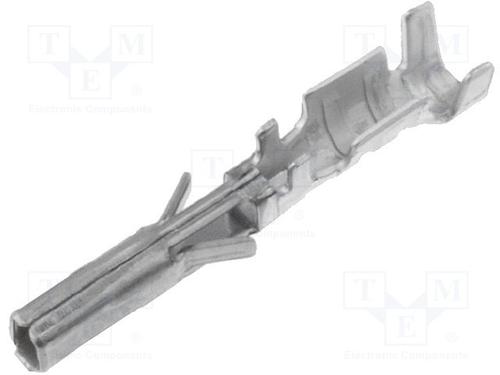

0430300005图片2
0430300005图片3

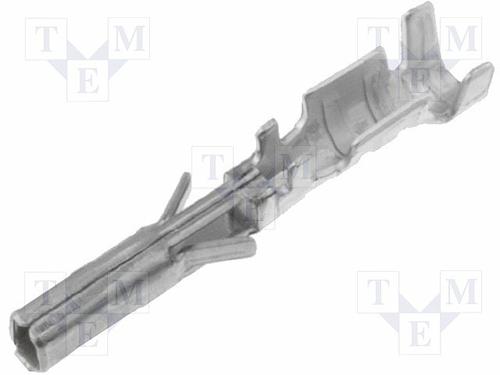

0430300005图片4
0430300005图片5
0430300005图片6
0430300005图片7

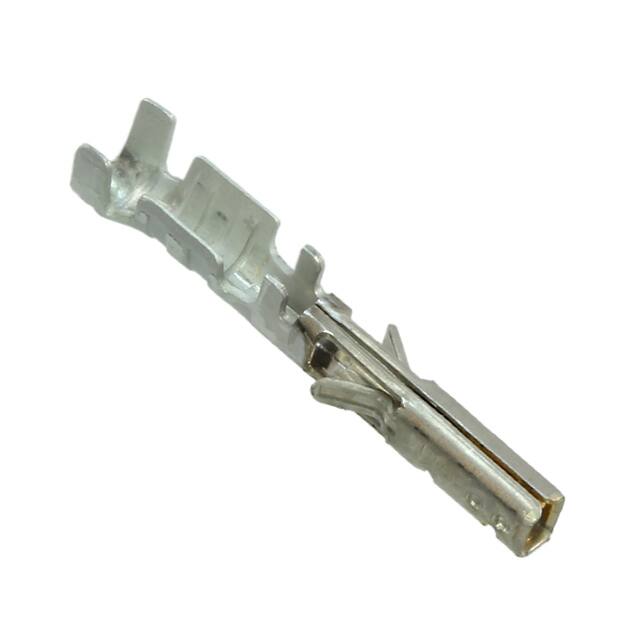

0430300005图片8
0430300005概述

微飞度3.0 ™压接端子,女,与金(Au )电镀锡/铜合金触点, 26-30 AWG ,卷 Micro-Fit 3.0™ Crimp Terminal, Female, with Gold Au Plated Tin/Brass Alloy Contact, 26-30 AWG, Reel

Socket Contact Gold 26-30 AWG Crimp


得捷:
CONN SOCKET 26-30AWG CRIMP GOLD


立创商城:
0430300005


艾睿:
0430300005 Molex Connector Contacts SKT Crimp ST Cable Mount 26-30AWG Micro-Fit 3.0™ Reel - Arrow.com


安富利:
Contact SKT Crimp ST Cable Mount T/R


Chip1Stop:
Contact SKT Crimp ST Cable Mount T/R


Verical:
Contact SKT Crimp ST Cable Mount 26-30AWG Micro-Fit 3.0™ Reel


0430300005中文资料参数规格
技术参数

触点数 1

线规 26AWG ~ 30AWG

触点电镀 Gold

额定电流Max 5 A

接触电阻Max 10 mΩ

封装参数

封装 -

外形尺寸

长度 11 mm

宽度 2.1 mm

高度 1.91 mm

封装 -

物理参数

触点材质 Phosphor Bronze

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0430300005
型号: 0430300005
制造商: Molex 莫仕
描述:微飞度3.0 ™压接端子,女,与金(Au )电镀锡/铜合金触点, 26-30 AWG ,卷 Micro-Fit 3.0™ Crimp Terminal, Female, with Gold Au Plated Tin/Brass Alloy Contact, 26-30 AWG, Reel
