0002091117

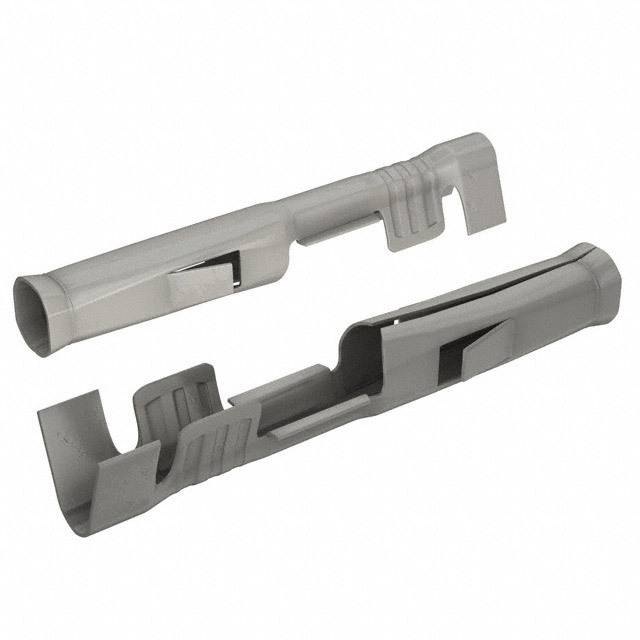

0002091117图片1
0002091117图片2
0002091117概述

2.36毫米( .093 “ )直径,标准.093 ”引脚和插口压接端子, 1381系列,女,锡( Sn)的镀黄铜触点, 18-22 AWG ,卷 2.36mm .093" Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1381, Female, with Tin Sn Plated Brass Contact, 18-22 AWG, Reel

This connector contact from will produce a strong wired connection. It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 17 A. This has a Connector Headers and PCB Receptacles connector. This connector contact has an operating temperature range of -40 °C to 105 °C. This product is 21.97 mm long, 4.83 mm tall and 5.33 mm deep. Its wire is 18-22 AWG. It uses the crimp termination method.

0002091117中文资料参数规格
技术参数

触点数 1

额定电流Max 17 A

工作温度Max 105 ℃

工作温度Min -40 ℃

接触电阻Max 10 mΩ

外形尺寸

长度 21.97 mm

宽度 5.33 mm

高度 4.83 mm

物理参数

触点材质 Brass

材质 Brass

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买0002091117
型号: 0002091117
制造商: Molex 莫仕
描述:2.36毫米( .093 “ )直径,标准.093 ”引脚和插口压接端子, 1381系列,女,锡( Sn)的镀黄铜触点, 18-22 AWG ,卷 2.36mm .093" Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1381, Female, with Tin Sn Plated Brass Contact, 18-22 AWG, Reel
替代型号0002091117
型号/品牌 代替类型 替代型号对比

0002091117

Molex 莫仕

当前型号

当前型号

0002091119

莫仕

完全替代

0002091117和0002091119的区别

02-09-1119

莫仕

功能相似

0002091117和02-09-1119的区别
