0039000183

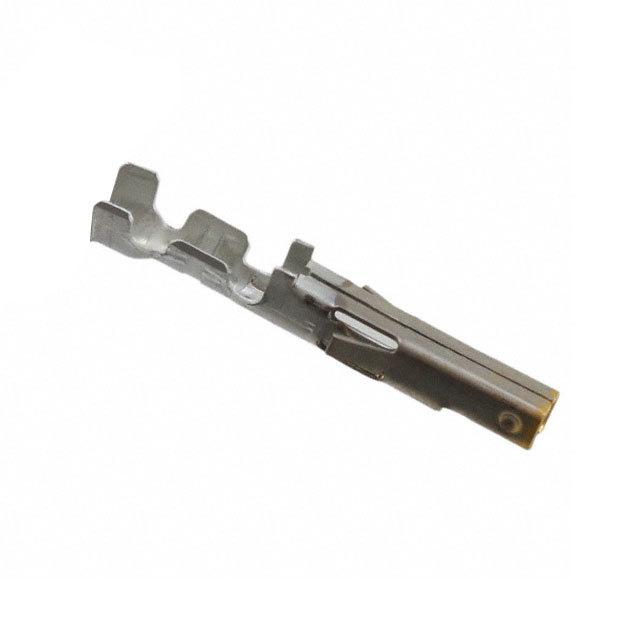

0039000183图片1
0039000183图片2
0039000183图片3
0039000183图片4
0039000183图片5
0039000183概述

4.20毫米( .165 “ )间距微型飞度压接端子,女,磷青铜,金(Au ) , 22-28 AWG ,卷 4.20mm .165" Pitch Mini-Fit Crimp Terminal, Female, Phosphor Bronze, Gold Au,22-28 AWG, Reel

Need a strong connection for your wires? This connector contact from is the most traditional form of connections binding. It has a socket type gender. It has a straight body orientation. This device has a maximum current rating of 9 A. This has a Connector Headers and PCB Receptacles connector. This product is 14.7 mm long, 2.3 mm tall and 2.3 mm deep. It uses the crimp termination method. This connector contact has a minimum operating temperature of -40 °C and a maximum of 105 °C.

0039000183中文资料参数规格
技术参数

触点数 1

极性 Female

线规 22AWG ~ 28AWG

额定电流Max 9 A

接触电阻Max 10 mΩ

外形尺寸

高度 2.3 mm

物理参数

触点材质 Phosphor Bronze

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0039000183
型号: 0039000183
制造商: Molex 莫仕
描述:4.20毫米( .165 “ )间距微型飞度压接端子,女,磷青铜,金(Au ) , 22-28 AWG ,卷 4.20mm .165" Pitch Mini-Fit Crimp Terminal, Female, Phosphor Bronze, Gold Au,22-28 AWG, Reel
替代型号0039000183
型号/品牌 代替类型 替代型号对比

0039000183

Molex 莫仕

当前型号

当前型号

0039000184

莫仕

完全替代

0039000183和0039000184的区别
