0002092101

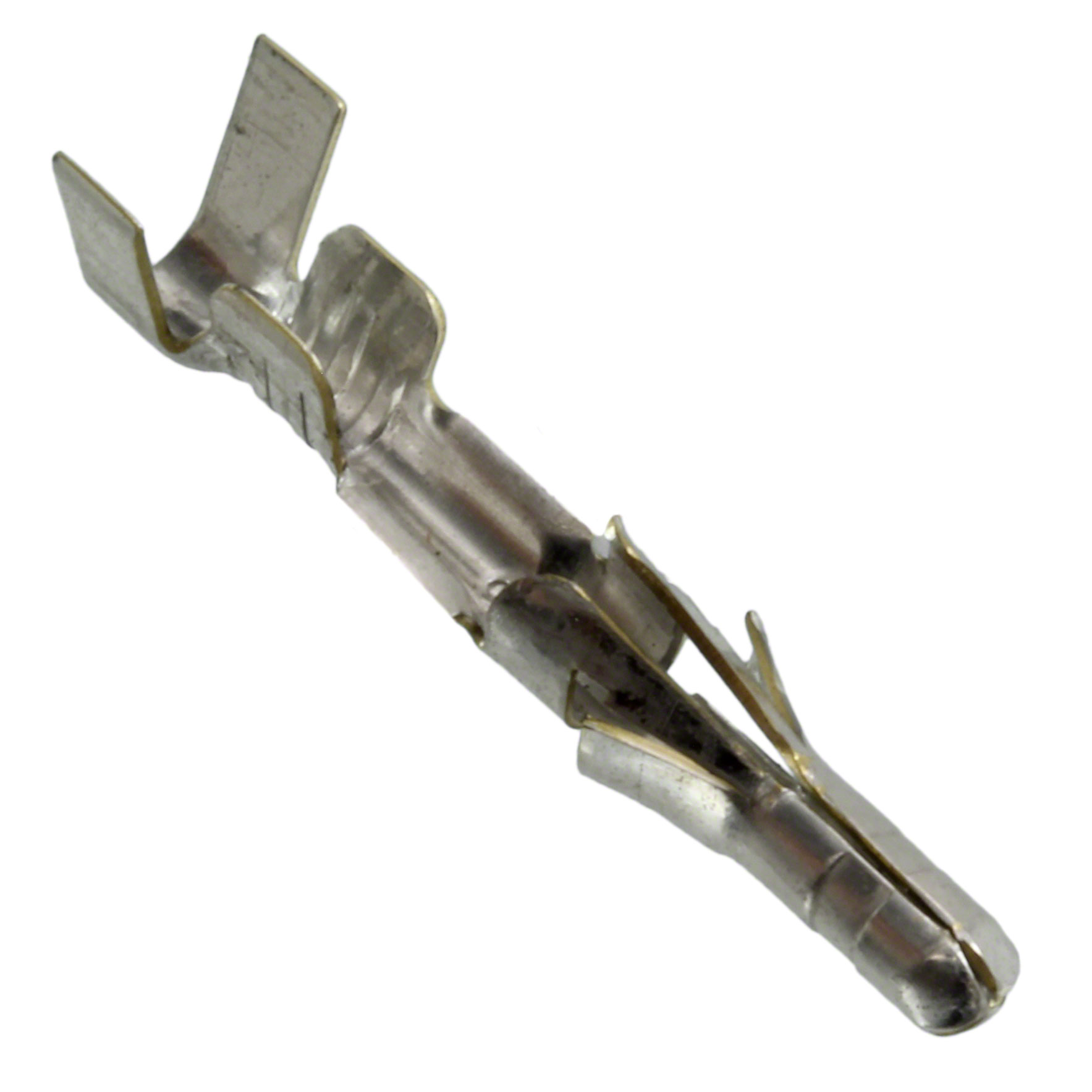

0002092101图片1
0002092101图片2
0002092101图片3
0002092101图片4
0002092101概述

2.36毫米( .093 “ )直径,标准.093 ”引脚和插口压接端子,系列1190 ,男,锡( Sn)的镀黄铜触点, 14-20 AWG ,卷 2.36mm .093" Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1190, Male, with Tin Sn Plated Brass Contact, 14-20 AWG, Reel

引脚 触点 锡 压接 14-20 AWG 功率


得捷:
CONN PIN 14-20AWG TIN CRIMP


艾睿:
Never worry about a poor connection with this 0002092101 connector contact from Molex. It has a straight body orientation. This device has a maximum current rating of 17 A. This has a Connector Headers and PCB Receptacles connector. This product is 19.81 mm long, 4.38 mm tall and 5.33 mm deep. This connector contact has an operating temperature range of -40 °C to 105 °C. It uses the crimp termination method. Its wire is 14-20 AWG.


Chip1Stop:
Contact PIN Crimp ST Cable Mount Reel


Verical:
Contact PIN Crimp ST Cable Mount 14-20AWG Standard .093" Reel


0002092101中文资料参数规格
技术参数

触点数 1

线规 14AWG ~ 20AWG

额定电流Max 17 A

工作温度Max 105 ℃

工作温度Min -40 ℃

接触电阻Max 10 mΩ

外形尺寸

长度 19.81 mm

宽度 5.33 mm

高度 4.38 mm

物理参数

触点材质 Brass

材质 Brass

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0002092101
型号: 0002092101
制造商: Molex 莫仕
描述:2.36毫米( .093 “ )直径,标准.093 ”引脚和插口压接端子,系列1190 ,男,锡( Sn)的镀黄铜触点, 14-20 AWG ,卷 2.36mm .093" Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1190, Male, with Tin Sn Plated Brass Contact, 14-20 AWG, Reel
替代型号0002092101
型号/品牌 代替类型 替代型号对比

0002092101

Molex 莫仕
