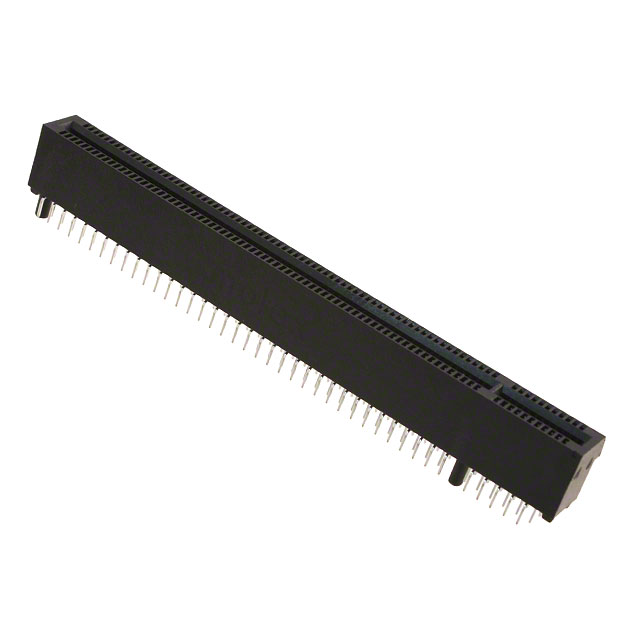

1.00毫米（ .039 ）间距，的PCI Express *连接器， 164电路，尼龙4/6玻璃填充，黑色外壳，磷青铜， 0.38μm （ 15μ ），金（Au ）镀层 1.00mm .039 Pitch, PCI Express* Connector, 164 Circuits, Nylon 4/6 Glass-filled, Black Housing, Phosphor Bronze, 0.38μm 15μ Gold Au Plating
"s pci express card edge smart card connector eliminates the need for an opposite male connector, as the male edge of a PCB will fit snugly into this connector. This SKT connector"s 164 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 50 VDC|50VAC. This is a 2-row connector. It has a socket type gender. Its pitch is 2 mm. It has a straight body orientation. This device has a maximum current rating of 1.1 A/contact. This product is 11.25 mm tall. This component will be shipped in tray format. This card edge connector has an operating temperature of -55 to 85 °C. 0877159302 is housed in black nylon 4/6. It uses the solder termination method.
