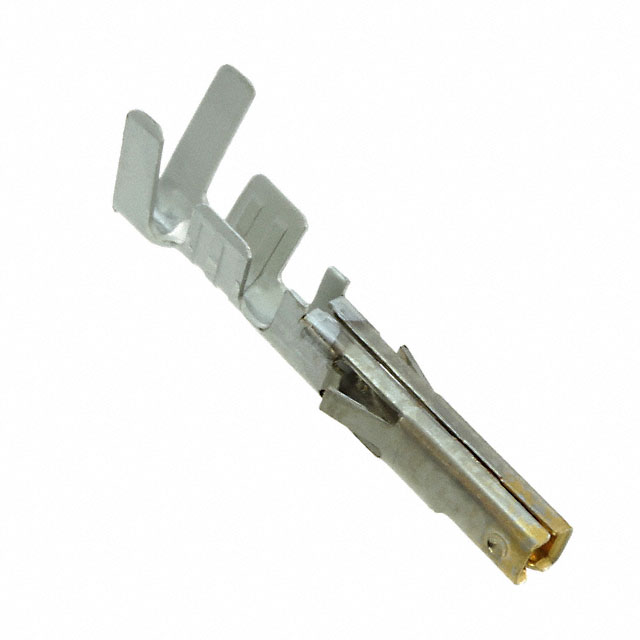

0039000185图片2
0039000185图片3
0039000185图片4
0039000185图片5
0039000185图片6
0039000185概述

4.20毫米( .165 “ )间距微型飞度压接端子,女,磷青铜,金(Au ) , 18-24 AWG ,卷 4.20mm .165" Pitch Mini-Fit Crimp Terminal, Female, Phosphor Bronze, Gold Au, 18-24 AWG, Reel

功率 插口 触点 镀金 16 AWG 压接


得捷:
CONN SOCKET 16AWG CRIMP GOLD


艾睿:
Easily improve a secured connection with this specially engineered 0039000185 connector contact from Molex. It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 9 A. This has a Connector Power connector. It uses the crimp termination method. Its wire is 16 AWG. This product is 14.7 mm long, 4.5 mm tall and 3.6 mm deep. This connector contact has a minimum operating temperature of -40 °C and a maximum of 105 °C.


安富利:
Contact SKT Crimp ST Cable Mount Reel


Chip1Stop:
Contact SKT Crimp ST Cable Mount Reel


Verical:
Contact SKT Crimp ST Cable Mount 16AWG Mini-Fit® Reel


0039000185中文资料参数规格
技术参数

触点数 1

极性 Female

线规 16 AWG

额定电流Max 9 A

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压Max 600 V

接触电阻Max 10 mΩ

外形尺寸

长度 14.7 mm

宽度 3.6 mm

高度 4.5 mm

物理参数

触点材质 Phosphor Bronze

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买0039000185
型号: 0039000185
制造商: Molex 莫仕
描述:4.20毫米( .165 “ )间距微型飞度压接端子,女,磷青铜,金(Au ) , 18-24 AWG ,卷 4.20mm .165" Pitch Mini-Fit Crimp Terminal, Female, Phosphor Bronze, Gold Au, 18-24 AWG, Reel
替代型号0039000185
型号/品牌 代替类型 替代型号对比

0039000185

Molex 莫仕

当前型号

当前型号

0039000186

莫仕

完全替代

0039000185和0039000186的区别

0039000157

莫仕

完全替代

0039000185和0039000157的区别
