0548190572

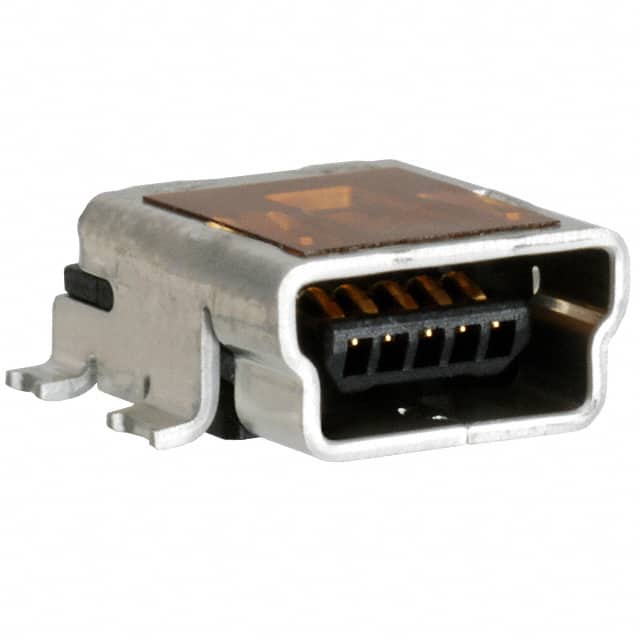

USB的On-the - Go的迷你B型插座，直角， SMT焊尾和ShellTabs ，盖带，无铅 USB On-The-Go OTG Mini-B Receptacle, Right Angle, SMT Solder Tails and ShellTabs, with Cover Tape, Lead-free

USB - mini B USB 2.0 OTG 插座 5 位 表面贴装，直角，通孔

得捷:
CONN RCPT USB2.0 MINI B SMD R/A

艾睿:
Utilize your audio and video with the mini USB type b 0548190572 audio and video connector from Molex. This RCP connector&s;s 5 contacts that are made out of copper alloy and plated with gold over nickel. It has a receptacle type gender. Its pitch is 0.8 mm. It has a right angle body orientation. It has a maximum voltage rating of 30 V. This connector has a single port. 0548190572 is housed in polyester alloy. This device has a maximum current rating of 1 A/contact. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 9.9 mm long and 9 mm. Its 5 terminals use the solder termination method. This part has an operating temperature range of -20 °C to 85 °C.

安富利:
Conn USB RCP 5 POS 0.8mm Solder RA SMD 5 Terminal 1 Port Embossed T/R

Chip1Stop:
Conn USB RCP 5 POS 0.8mm Solder RA SMD 5 Terminal 1 Port Embossed T/R

Verical:
Conn Mini USB 2.0 Type B RCP 5 POS 0.8mm Solder RA SMD 5 Terminal 1 Port USB OTG T/R
