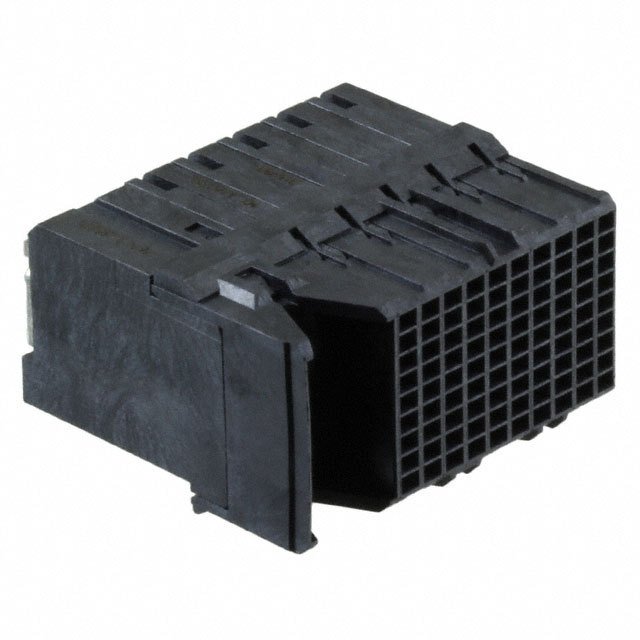

Conn Daughter Card RCP 90POS 1.9mm Press Fit RA Thru-Hole Impact Tray
Solder this daughter card backplane connector from directly onto a PCB to more easily link multiple connectors together. This RCP connector"s 90 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 1.9 mm. This is a 9-row connector. It has a right angle body orientation. It has a maximum voltage rating of 120 VDC|120VAC. It has a receptacle type gender. This device has a maximum current rating of 0.5 A/contact. The item will be shipped in tray orientation. It uses the press fit termination method. This product is 26.6 mm long, 15 mm tall and 24.11 mm deep. 0761703020 is housed in black liquid crystal polymer. This backplane connector has an operating temperature of -55 to 85 °C.
