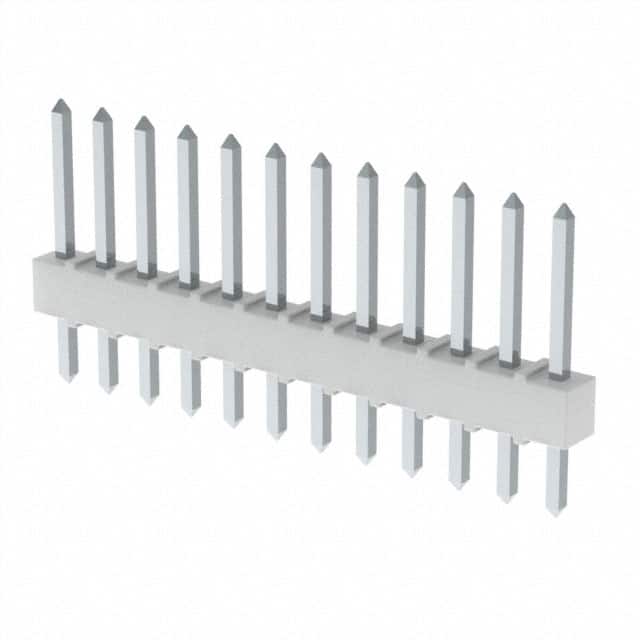

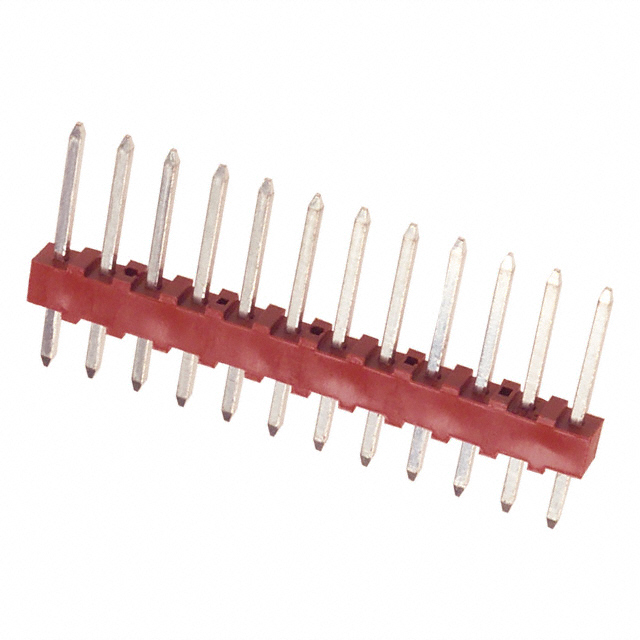

2.54毫米（ .100 ）间距KK®线对板头，单列，立式，电路12 ，PA聚酰胺尼龙，锡（Sn ）镀层 2.54mm .100 Pitch KK® Wire-to-Board Header, Single Row, Vertical, 12 Circuits, PA Polyamide Nylon, Tin Sn Plating
Connector Header Through Hole 12 position 0.100" 2.54mm
得捷:
CONN HEADER VERT 12POS 2.54MM
艾睿:
Easily mount this unshrouded 0022032121 header connector from Molex onto your PCB project to support a variety of physical configuration options. This HDR connector&s;s 12 contacts that are made out of brass and plated with tin over copper. It has a straight body orientation. This is a 1-row connector. It has a header type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 250 V. This device has a maximum current rating of 4 A/contact. It uses the solder termination method. 0022032121 is housed in white nylon. This product is 30.23 mm long, 10.79 mm tall and 2.34 mm deep. This connector has an operating temperature of -40 to 80 °C.
安富利:
Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Bulk
Verical:
Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole KK® Bag
