0482040001

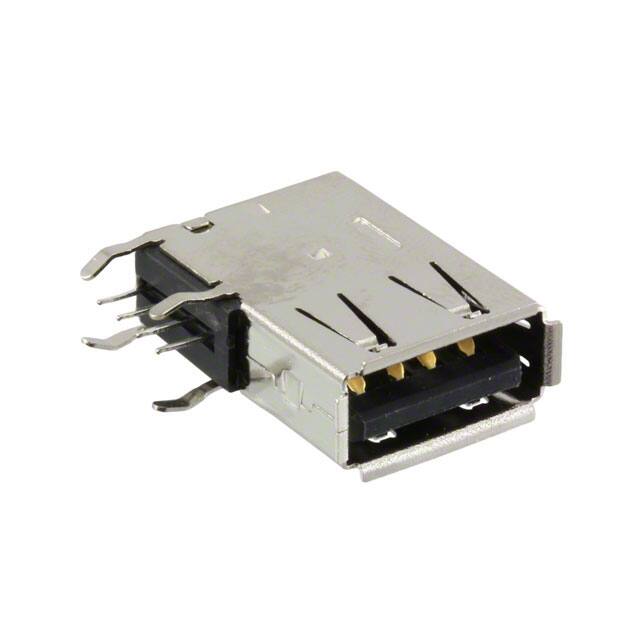

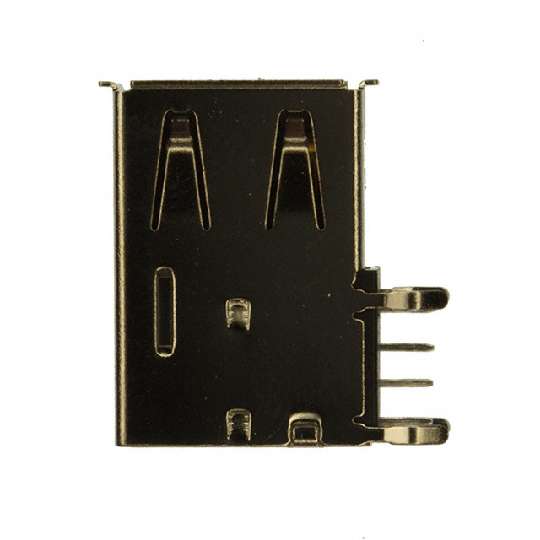

通用串行总线（ USB ）屏蔽I / O插座， A型立式直角，反山，焊尾 Universal Serial Bus USB Shielded I/O Receptacle, Type A Upright Right Angle, Reverse Mount, Solder Tail

This usb type a audio and video connector from can be adopted in any design which needs a peripheral audio and video device connected to it. This RCP connector"s 4 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a receptacle type gender. It has a right angle body orientation. It has a maximum voltage rating of 30 VDC|30VAC. This connector has a single port. Its pitch is 2 mm. This device has a maximum current rating of 1.5 A/contact. 0482040001 is housed in polyester. The component will be shipped in tray format. Its 4 terminals use the solder termination method. This part has an operating temperature range of -55 °C to 85 °C. This product is 7.2 mm long and 19.25 mm.
