0482580002

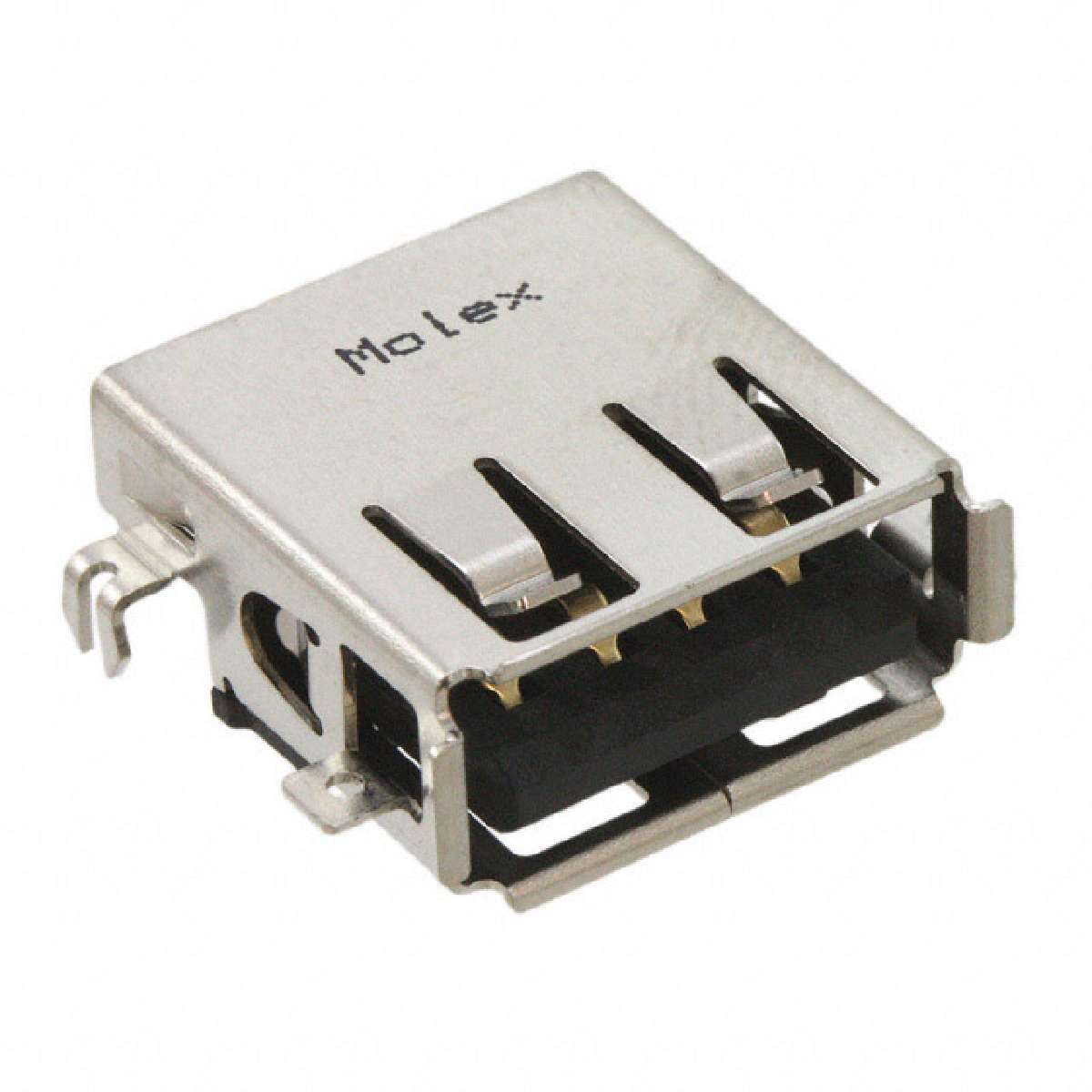

通用串行总线（ USB ）屏蔽I / O插座， A型，直角，反向漏型，中间安装有侧法兰及斜面金属针， 0.76μm （ 30μ “），金（Au ），电镀，无铅 Universal Serial Bus USB Shielded I/O Receptacle, Type A, Right Angle,Sink Reverse Type, Mid Mount with side flange and Beveled Metal Pins, 0.76μm 30μ" Gold Au Plating, Lead free

Use the usb type a audio and video connector from to make your application work properly. This RCP connector"s 4 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a receptacle type gender. Its pitch is 3.5 mm. It has a maximum voltage rating of 250 VAC. This connector has a single port. It has a right angle body orientation. This device has a maximum current rating of 1.5 A/contact. 0482580002 is housed in nylon/polyamide 6t. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This part has a minimum operating temperature of -25 °C and a maximum of 85 °C. This product is 17.1 mm long, 14 mm tall and 6.9 mm deep. Its 4 terminals use the solder termination method.
