0471511002

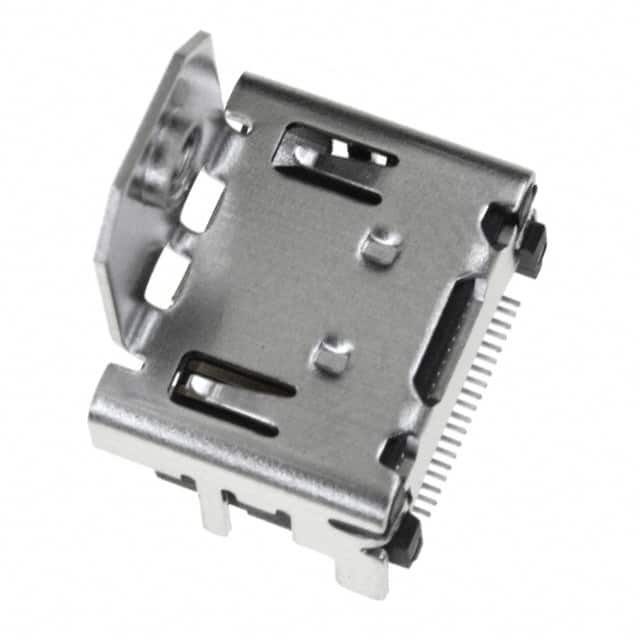

0.50毫米（ 0.020 “ ）间距HDMI插座，直角带螺钉法兰，前焊片长度1.80毫米（ .071 ” ） 0.50mm .020" Pitch HDMI Receptacle, Right Angle with Screw Flange, Front Solder Tab Length 1.80mm .071"

Make a secure connection for your applications" sound with the hdmi audio and video connector from . This RCP connector"s 19 contacts that are made out of copper alloy and plated with gold over nickel. It has a right angle body orientation. It has a receptacle type gender. It has a maximum voltage rating of 40 VDC. This connector has a single port. Its pitch is 0.5 mm. 0471511002 is housed in thermoplastic. This device has a maximum current rating of 0.5 A/contact. The component will be shipped in tray format. This product is 15 mm long, 16.08 mm tall and 12.15 mm deep. Its 19 terminals use the solder termination method. This part has an operating temperature range of -20 °C to 85 °C.
