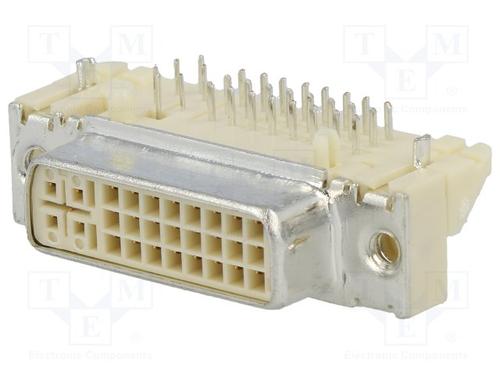

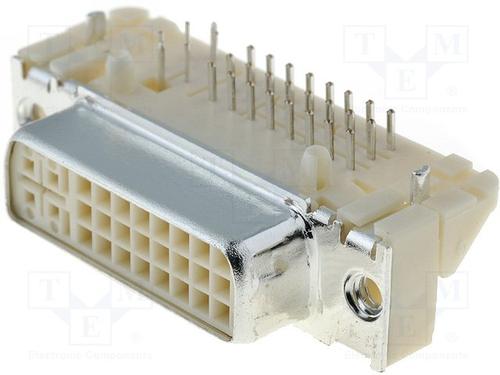

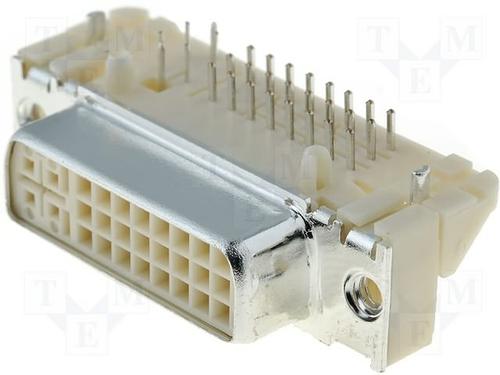

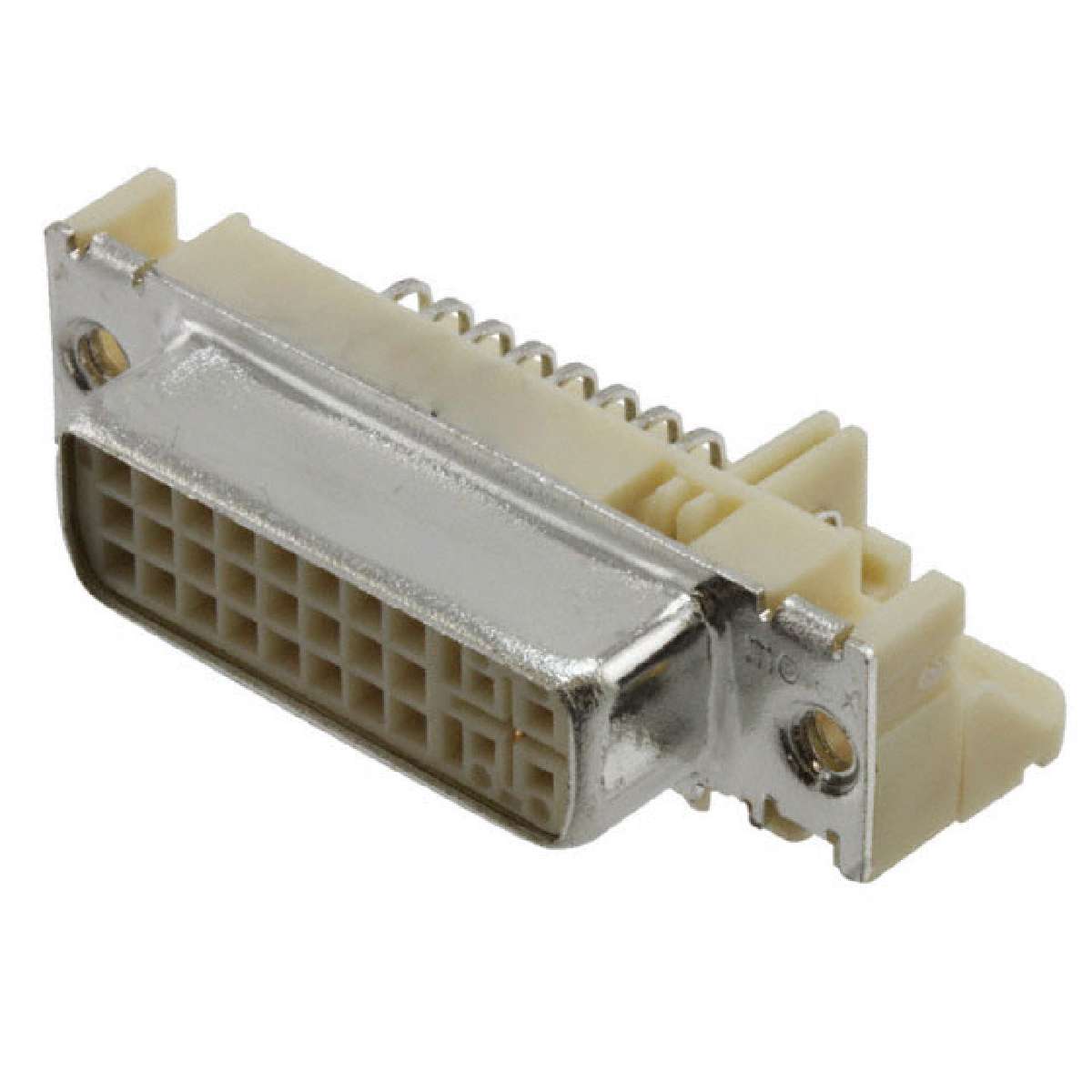

0743201000

MicroCross ™ DVI -I数字/模拟视频接口， PCB插座，通过HoleRight角度， 2.34毫米（ 0.092 “ ）的PC尾长， 29电路，无铅 MicroCross™ DVI-I Digital/Analog Visual Interface, PCB Receptacle, Through HoleRight Angle, 2.34mm .092" P.C. Tail Length, 29 Circuits, Lead Free

DVI-I，双链路 - 插座 29 位 面板安装，通孔，直角

得捷:
CONN RCPT DVI-I DL 29POS PCB R/A

贸泽:
HDMI, Displayport & DVI Connectors DVI-I 29P REC RA TH PANEL 30AU

艾睿:
Make your product&s;s components work properly with the microcross 0743201000 audio and video connector from Molex. This RCP connector&s;s 29 contacts that are made out of copper alloy and plated with gold over nickel. It has a receptacle type gender. Its pitch is 1.91 mm. It has a maximum voltage rating of 40 VAC. This connector has a single port. It has a right angle body orientation. 0743201000 is housed in polymer. This device has a maximum current rating of 3 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. Its 29 terminals use the solder termination method. This product is 36.83 mm long, 9.91 mm tall and 18.03 mm deep. This part has an operating temperature range of -20 °C to 85 °C.

安富利:
Conn MicroCross RCP 29 POS 1.91mm Solder RA Thru-Hole 29 Terminal 1 Port Tray

TME:
Connector: DVI-I; socket; MicroCross DVI; PIN:29; gold-plated

Verical:
Conn MicroCross RCP 29 POS 1.91mm Solder RA Thru-Hole 29 Terminal 1 Port MicroCross™ Tray
