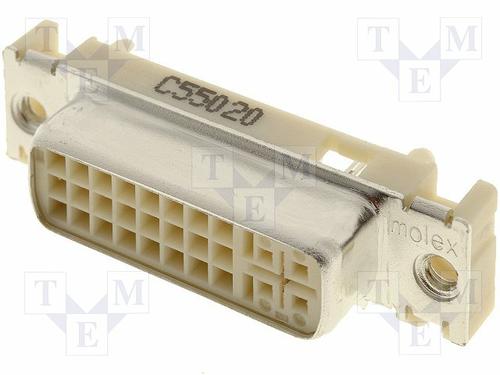

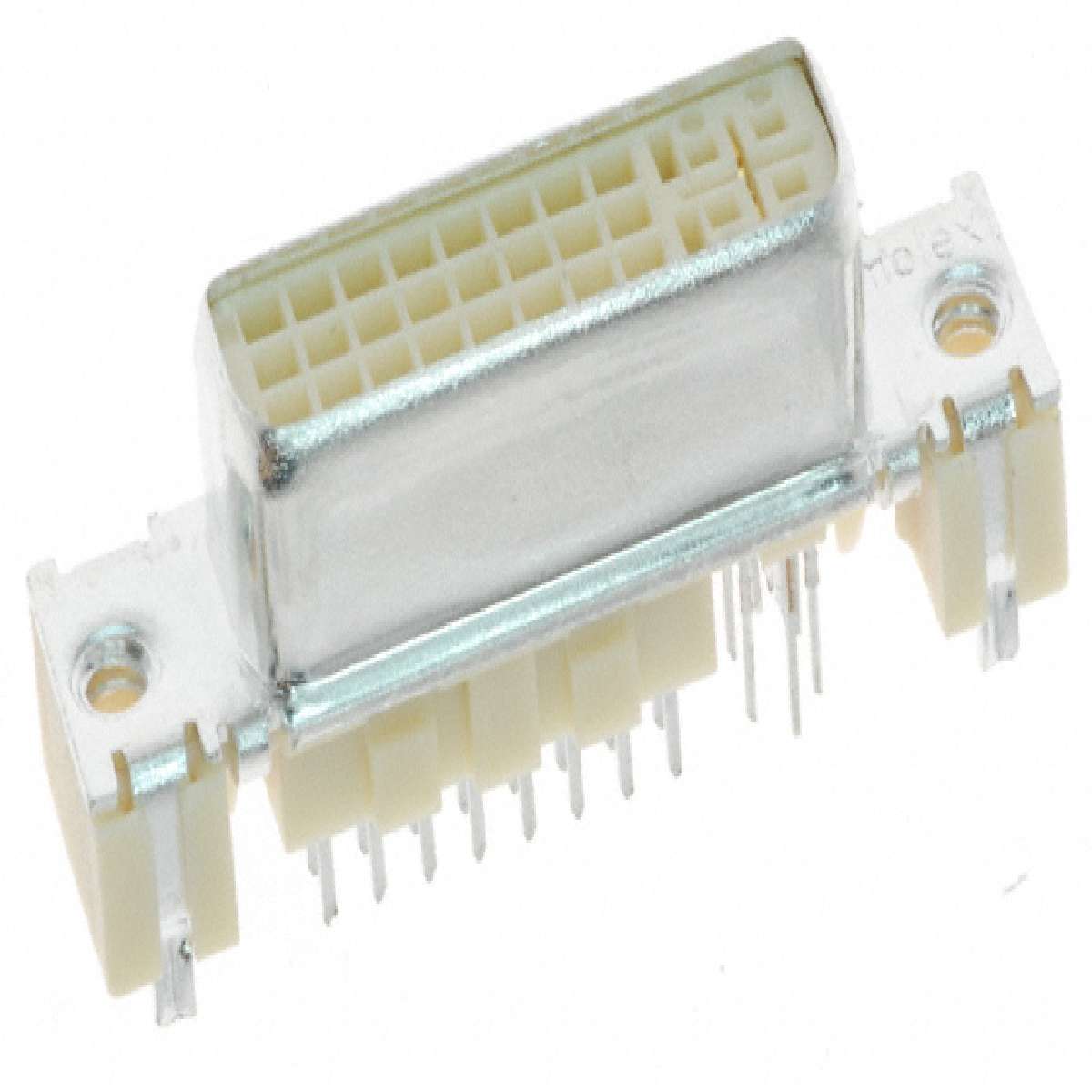

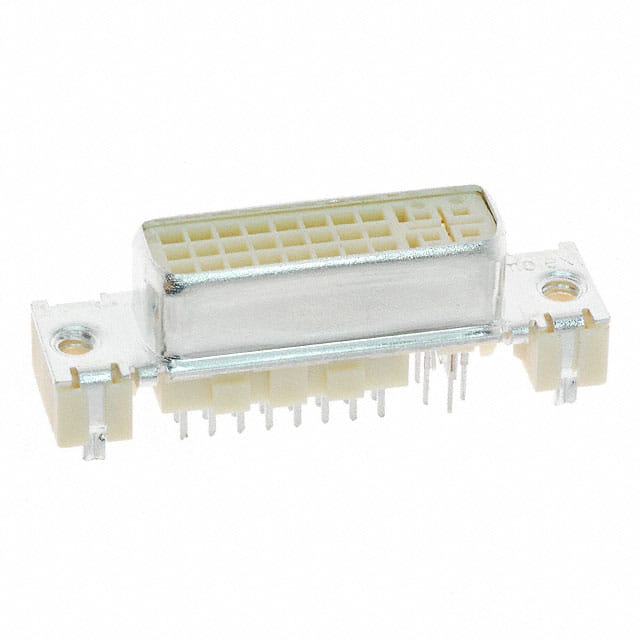

MicroCross ™ DVI -I数字/模拟视频接口， PCB插座，面板MountThrough孔，垂直，薄金，无铅，螺丝孔， 4-40螺纹， 29电路 MicroCross™ DVI-I Digital/Analog Visual Interface, PCB Receptacle, Panel MountThrough Hole, Vertical, Gold Flash, Lead Free, Screw Hole, 4-40 Thread, 29 Circuits
DVI-I，双链路 - 插座 29 位 面板安装，通孔
得捷:
CONN RCPT DVI-I DUAL 29POS PCB
贸泽:
HDMI, Displayport & DVI Connectors DVI-I 29P REC VT TH PANEL AUFL
艾睿:
The microcross 0743203004 audio and video connector from Molex allows you to operate video and sound in your design. This RCP connector&s;s 29 contacts that are made out of copper alloy and plated with gold over nickel. It has a receptacle type gender. It has a straight body orientation. Its pitch is 1.91 mm. It has a maximum voltage rating of 40 VAC. This connector has a single port. 0743203004 is housed in polymer. This device has a maximum current rating of 3 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. This product is 36.83 mm long, 11.48 mm tall and 9.91 mm deep. This part has an operating temperature range of -20 °C to 85 °C. Its 29 terminals use the solder termination method.
安富利:
Conn MicroCross RCP 29 POS 1.91mm Solder ST Thru-Hole 29 Terminal 1 Port Tray
Verical:
Conn MicroCross RCP 29 POS 1.91mm Solder ST Thru-Hole 29 Terminal 1 Port MicroCross™ Tray
