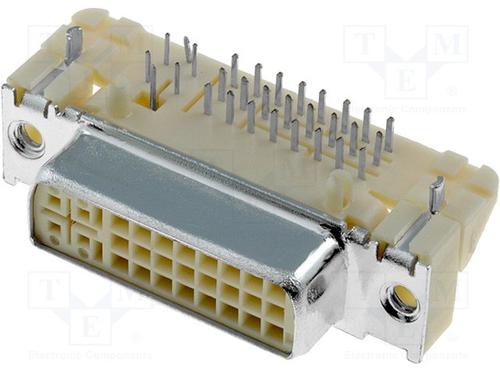

MicroCross ™ DVI -I数字/模拟视频接口， PCB插座，面板安装，通孔，直角，金（Au ）闪镀，螺丝孔， 4-40螺纹， 2.34毫米 MicroCross™ DVI-I Digital/Analog Visual Interface, PCB Receptacle, Panel Mount,Through Hole, Right Angle, Gold Au Flash Plating, Screw Hole, 4-40 Thread, 2.34mm
DVI-I，双链路 - 插座 29 位 面板安装，通孔，直角
得捷:
CONN RCPT DVI-I DL 29POS PCB R/A
贸泽:
HDMI, Displayport & DVI Connectors DVI-I 29P REC RA TH PANEL AUFL
艾睿:

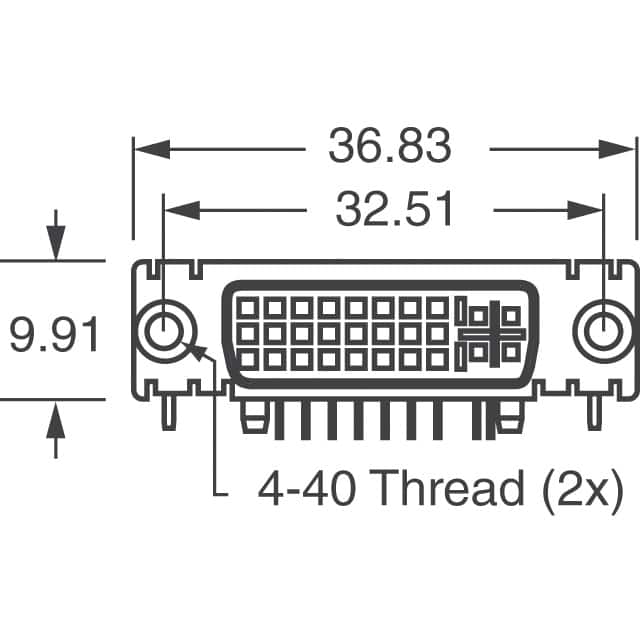

Run your audio and video effectively with the microcross 0743201004 audio and video connector from Molex. This RCP connector&s;s 29 contacts that are made out of copper alloy and plated with gold over nickel. This connector has a single port. It has a receptacle type gender. It has a maximum voltage rating of 40 VAC. Its pitch is 1.91 mm. It has a right angle body orientation. This device has a maximum current rating of 3 A/contact. 0743201004 is housed in polymer. The item will be shipped in tray orientation. This product is 36.83 mm long, 9.91 mm tall and 18.03 mm deep. Its 29 terminals use the solder termination method. This part has an operating temperature range of -20 °C to 85 °C.
安富利:
Conn MicroCross RCP 29 POS 1.91mm Solder RA Thru-Hole 29 Terminal 1 Port Tray
Verical:
Conn MicroCross RCP 29 POS 1.91mm Solder RA Thru-Hole 29 Terminal 1 Port MicroCross™ Tray
