0743209010

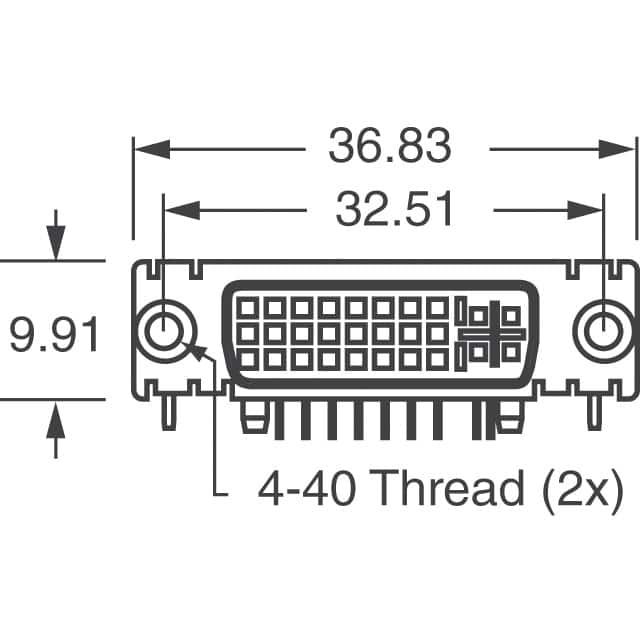

0743209010图片1

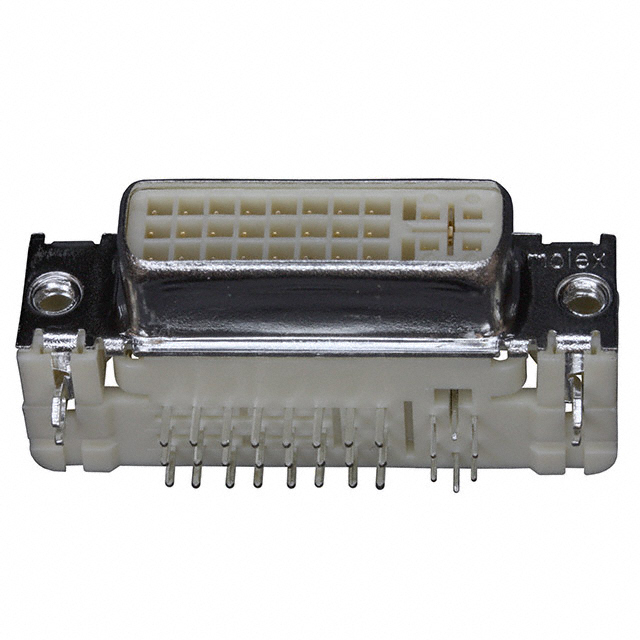

0743209010图片2
0743209010图片3
0743209010图片4
0743209010概述

MicroCross ™ DVI -I数字/模拟视频接口, PCB插座,面板MountThrough孔,直角,斜角带金属针, 0.76μm ( 30μ “),金(Au ) ,铅 MicroCross™ DVI-I Digital/Analog Visual Interface, PCB Receptacle, Panel MountThrough Hole, Right Angle, with Beveled Metal Pins, 0.76μm 30μ" Gold Au, Lead

DVI-I,双链路 - 插座 29 位 面板安装,通孔,直角


得捷:
CONN RCPT DVI-I DL 29POS PCB R/A


立创商城:
0743209010


艾睿:
Use the microcross 0743209010 audio and video connector from Molex to make your application work properly. This RCP connector&s;s 29 contacts that are made out of copper alloy and plated with gold over nickel. It has a receptacle type gender. It has a right angle body orientation. This connector has a single port. Its pitch is 1.91 mm. It has a maximum voltage rating of 40 VAC. This device has a maximum current rating of 3 A/contact. 0743209010 is housed in thermoplastic. The component will be shipped in tray format. Its 29 terminals use the solder termination method. This product is 36.83 mm long, 9.91 mm tall and 18.03 mm deep. This part has an operating temperature range of -20 °C to 85 °C.


安富利:
Conn MicroCross RCP 29 POS 1.91mm Solder RA Thru-Hole 29 Terminal 1 Port Tray


Verical:
Conn MicroCross RCP 29 POS 1.91mm Solder RA Thru-Hole 29 Terminal 1 Port MicroCross™ Tray


0743209010中文资料参数规格
技术参数

触点数 29

拔插次数 100

额定电流Max 3A/触头

工作温度Max 85 ℃

工作温度Min -20 ℃

额定电压Max 40 VAC

额定电压 40 VAC

封装参数

安装方式 Through Hole

封装 -

外形尺寸

高度 9.91 mm

封装 -

物理参数

外壳颜色 Natural

触点材质 Copper Alloy

工作温度 -20℃ ~ 85℃

其他

产品生命周期 Unknown

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

海关信息

ECCN代码 EAR99

数据手册

在线购买0743209010
型号: 0743209010
制造商: Molex 莫仕
描述:MicroCross ™ DVI -I数字/模拟视频接口, PCB插座,面板MountThrough孔,直角,斜角带金属针, 0.76μm ( 30μ “),金(Au ) ,铅 MicroCross™ DVI-I Digital/Analog Visual Interface, PCB Receptacle, Panel MountThrough Hole, Right Angle, with Beveled Metal Pins, 0.76μm 30μ" Gold Au, Lead
