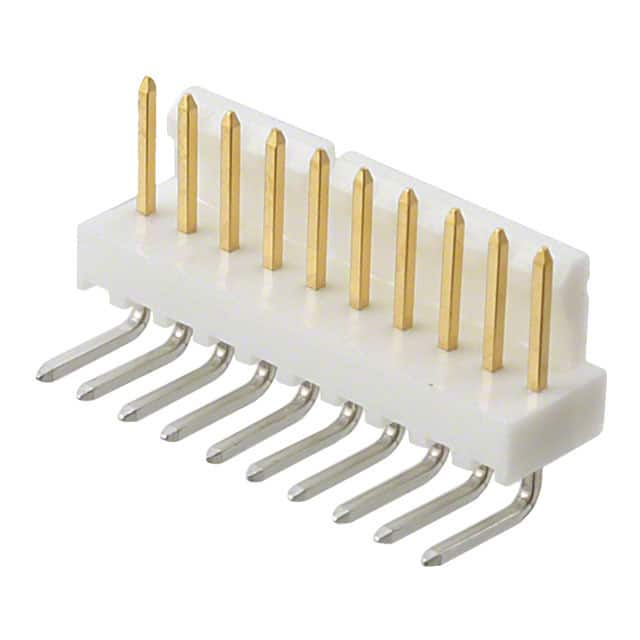

2.54毫米（ .100 ）间距KK®固体头，直角，用摩擦锁， 10电路， 0.51μm （ 20μ ），金（Au ）镀层 2.54mm .100 Pitch KK® Solid Header, Right Angle, with Friction Lock, 10 Circuits, 0.51μm 20μ Gold Au Plating
Connector Header Through Hole, Right Angle 10 position 0.100" 2.54mm
得捷:
CONN HEADER R/A 10POS 2.54MM
贸泽:
Headers & Wire Housings KK .100" HDR 10P RA 20AU
艾睿:
Use this wire to board 0022122104 connector from Molex when board-to-board interconnects is required. This HDR connector&s;s 10 contacts that are made out of brass and plated with gold over nickel. It has a maximum voltage rating of 250 V. It has a right angle body orientation. This is a 1-row connector. It has a header type gender. Its pitch is 2.54 mm. This device has a maximum current rating of 4 A/contact. 0022122104 is housed in white nylon. This product is 25.4 mm long, 6.35 mm tall and 12.83 mm deep. This connector has an operating temperature of -40 to 80 °C. It uses the solder termination method.
Verical:
Conn Wire to Board HDR 10 POS 2.54mm Solder RA Side Entry Thru-Hole KK® Bag
