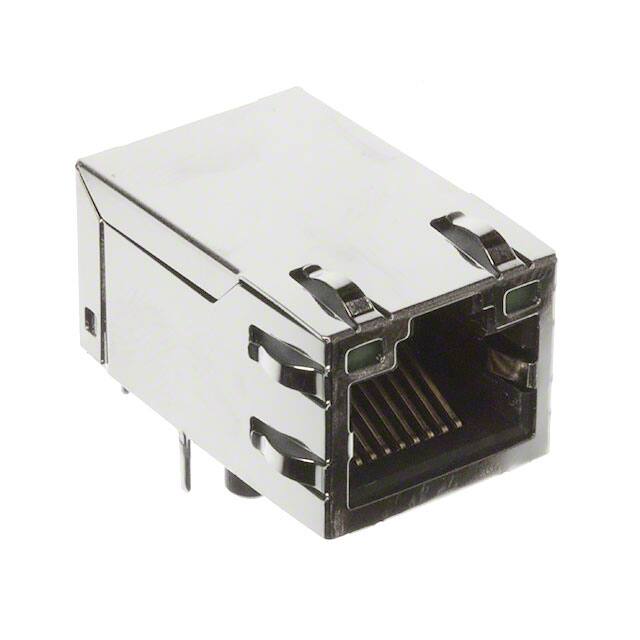

模块化插座,直角, 10/100 ,与磁集成和LED, 8/8 ,无铅 Modular Jack, Right Angle, 10/100, with Integrated Magnetic and LED, 8/8, Lead free
Have a telecom or phone line? This rj-45 telephone and telecom connector manufactured from will make a solid connection. This F connector"s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a female type gender. This connector has a single port. It has a right angle body orientation. It has a maximum voltage rating of 150 VAC. This device has a maximum current rating of 1.5 A/contact. The item will be shipped in tray orientation. It uses the solder termination method. This product is 18.34 mm long, 14.99 mm tall and 25.4 mm deep. This part has an operating temperature of -40 to 70 °C. 0480251090 is housed in black polyamide.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0480251090 Molex 莫仕 | 当前型号 | 当前型号 |
0817-1G1T-21-F 百富电子 | 类似代替 | 0480251090和0817-1G1T-21-F的区别 |
