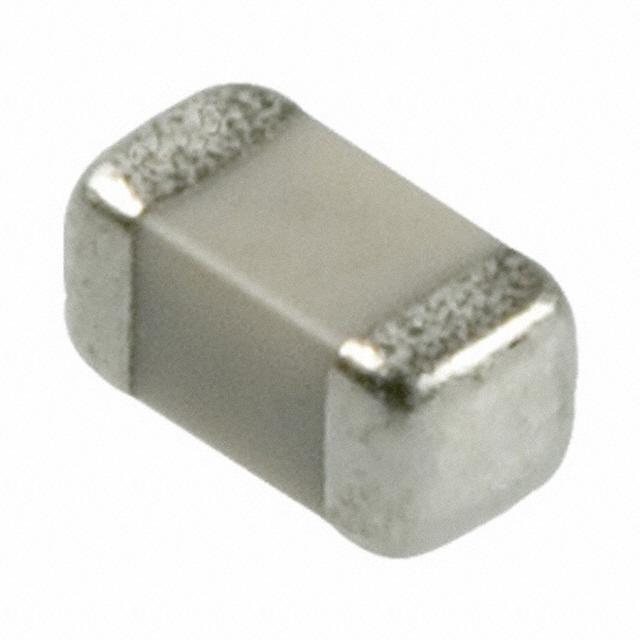

06035J120GBSTR图片1

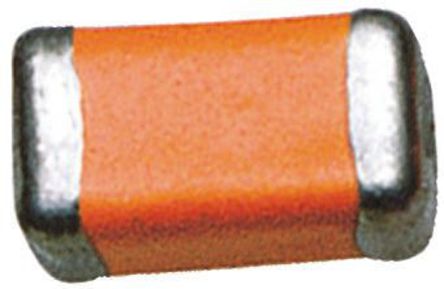

06035J120GBSTR图片2

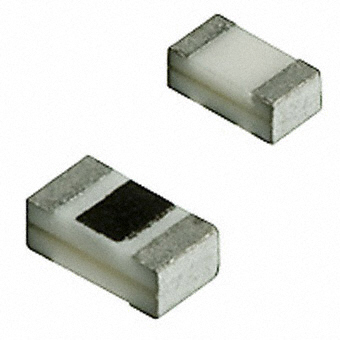

06035J120GBSTR图片3
06035J120GBSTR图片4
06035J120GBSTR图片5
06035J120GBSTR图片6
06035J120GBSTR图片7
06035J120GBSTR图片8
06035J120GBSTR图片9
06035J120GBSTR图片10
06035J120GBSTR图片11
06035J120GBSTR图片12
06035J120GBSTR图片13
06035J120GBSTR图片14
06035J120GBSTR图片15
06035J120GBSTR概述

AVX Accu-P 0603 seriesHigh purity of electrodes for very low and repeatable ESR Highly pure, low-K dielectric for high breakdown field, high insulation resistance and low losses to frequencies above 40GHz Very tight dimensional control for uniform inductance, unit to unit Very tight capacitance tolerances for high frequency signal applications ### 陶瓷表面安装 0603

Accu-P 0603 系列

高纯度电极,用于非常低的和可重复的 ESR

高纯度低 K 介电,具有高击穿电场、高绝缘电阻和低于 40GHz 的低频率损失

非常严格的尺寸控制,可用于均匀电感,装置到装置

非常严格的容差,用于高频信号应用


得捷:
CAP THIN FILM 12PF 50V 0603


欧时:
### AVX Accu-P 0603 seriesHigh purity of electrodes for very low and repeatable ESR Highly pure, low-K dielectric for high breakdown field, high insulation resistance and low losses to frequencies above 40GHz Very tight dimensional control for uniform inductance, unit to unit Very tight capacitance tolerances for high frequency signal applications ### 陶瓷表面安装 0603


贸泽:
基于硅的射频电容器/薄膜电容器 50V 12pF 2%Tol ThinFilm 0603


艾睿:
This cost-effective 06035J120GBSTR metal film capacitor from AVX boasts an excellent operating frequency range. It can withstand a voltage of 50 VDC. It has 2 terminals. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 1.6 mm long, 0.63 mm tall and 0.81 mm deep. This metal film capacitor has an operating temperature range of -55 °C to 125 °C. Its capacitance value is 12pF. This item should be stored between 15 °C and 35 °C. It has a tolerance of 2%.


Allied Electronics:
0603 Accu-P 12pF Ceramic Multilayer Cap; 50V dc; +125C; C0G Dielectric; +/-2% SMD


安富利:
Cap Ceramic 12pF 50V C0G 2% SMD 0603 125°C T/R


06035J120GBSTR中文资料参数规格
技术参数

额定电压DC 50.0 V

电容 12 pF

容差 ±2 %

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 50 V

封装参数

安装方式 Surface Mount

引脚数 2

封装公制 1608

封装 0603

外形尺寸

长度 1.6 mm

宽度 0.8 mm

高度 0.63 mm

封装公制 1608

封装 0603

物理参数

材质 A-F/-55℃~+125℃

工作温度 -55℃ ~ 125℃

温度系数 ±30 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 4000

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

数据手册

06035J120GBSTR引脚图与封装图
06035J120GBSTR引脚图

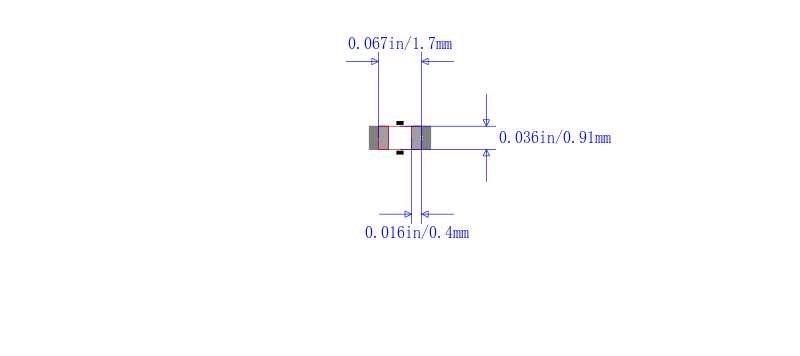

06035J120GBSTR封装图

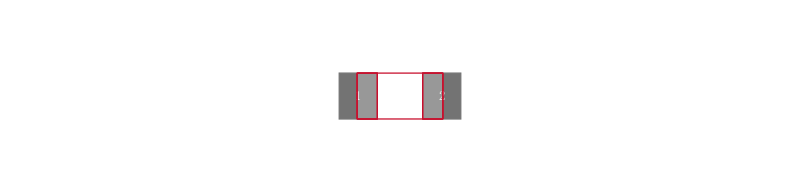

06035J120GBSTR封装焊盘图
在线购买06035J120GBSTR
型号: 06035J120GBSTR
制造商: AVX 艾维克斯
描述:AVX Accu-P 0603 series High purity of electrodes for very low and repeatable ESR Highly pure, low-K dielectric for high breakdown field, high insulation resistance and low losses to frequencies above 40GHz Very tight dimensional control for uniform inductance, unit to unit Very tight capacitance tolerances for high frequency signal applications ### 陶瓷表面安装 0603
替代型号06035J120GBSTR
型号/品牌 代替类型 替代型号对比

06035J120GBSTR

AVX 艾维克斯

当前型号

当前型号

06035J120GAWTR

艾维克斯

完全替代

06035J120GBSTR和06035J120GAWTR的区别
