0603ZD225KAT2A

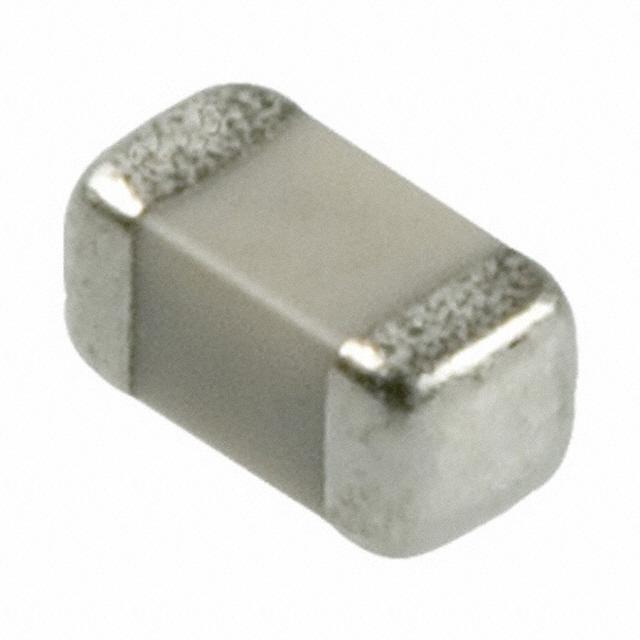

AVX  0603ZD225KAT2A  多层陶瓷电容器, 表面贴装, 2.2 µF, ± 10%, X5R, 10 V, 0603 [1608 公制]

The multilayer ceramic capacitors with EIA class II, X5R dielectric material are high capacitance ceramic chip capacitors for general purpose applications. This multilayer ceramic capacitor is a monolithic block of ceramic containing two sets of offset, interleaved planar electrodes that extend to two opposite surfaces of ceramic dielectric. These capacitors are well suited for decoupling and filtering applications.

.

Capacitance value ranges from 100pF to 100µF

.

EIA 0101, 0201, 0402, 0603, 0805, 1206, 1210, 1812 case sizes available

.

Rated DC voltage of 4V, 6.3V, 10V, 16V, 25V, 35V, 50V, 100V

.

±10% and ±20% tolerance

.

Nickel Ni and tin Sn plated terminations

.

Load life of 1000h at 85˚C

.

Operating temperature range -55˚C to 85˚C
