0357280201

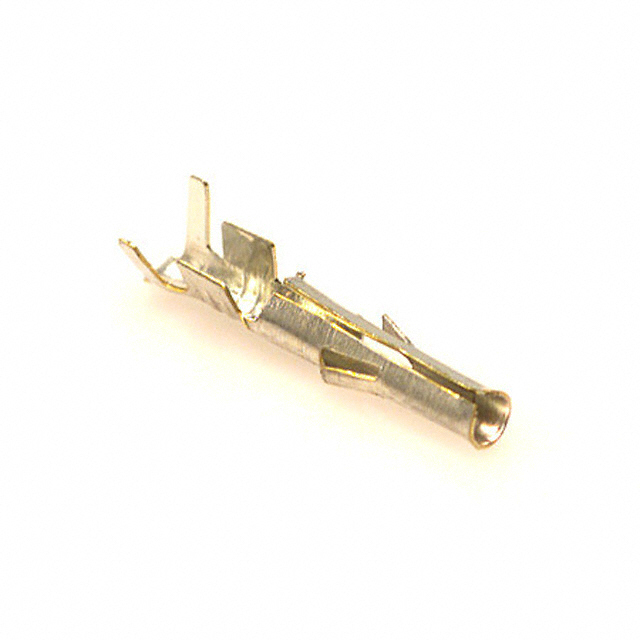

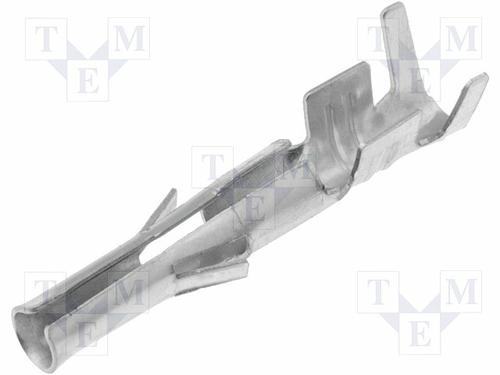

2.00毫米（ .079 “ ）直径插座端子，铜为0.25 （ 0.010 ” ）厚，线径14-20 AWG （ 2.00-0.52mm² ） ，预镀锡 2.00mm .079" Dia Socket Terminal, Brass, 0.25mm .010" Thickness, Wire Range 14-20 AWG 2.00-0.52mm², Pre-Tin Plated

Prevent premature failure by installing this connector contact from . It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 15 A. This has a Connector Headers and PCB Receptacles connector. Its wire is 14-20 AWG. This connector contact has an operating temperature range of -25 °C to 90 °C. This product is 20.5 mm long, 4.85 mm tall and 5.1 mm deep. It uses the crimp termination method.
