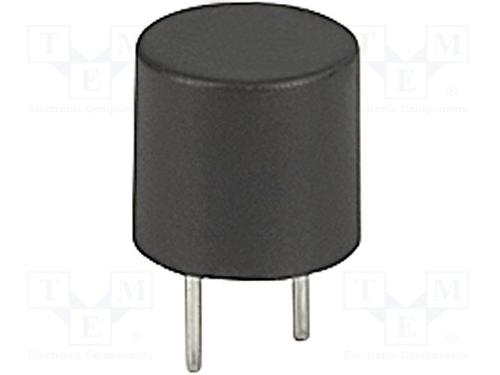

SCHURTER 0034.6925 保险丝, 电路板安装, 10 A, 250 VAC, MXT 250系列, 延迟, 径向引线
The is a 10A/250VAC time-lag Non-resettable Fuse with thermoplastic housing, tin-plated copper terminals and radial leaded fuse case. This MXT-series PCB/THT mount fuse features high breaking capacity. Directly solderable on printed circuit boards. Provides low voltage primary and secondary protection. Devices meet applicable international safety standards. Used for primary protection on PCB.
- .
- 62mV Typical voltage drop
- .
- -40 to 85°C Ambient air temperature range
- .
- UL94V-0 Flammability rating
额定电压AC 250 V
额定电流 10 A
易燃性等级 UL 94 V-0
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 径向引线
高度 8.5 mm
脚长度 4.30 mm
封装 径向引线
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Box
制造应用 Safety, Power Management, 安全, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
