0034.6020

Microfuse 熔丝 - MSF 和 MST 系列微型熔丝，用于焊接到印刷电路板或载体。 快熔式 MSF 或延时 MST 熔丝。 低断开容量。 额定电压： | 250 Vac ---|--- 断开容量 | 35 A（快熔式 4 和 5 A:  10 x In 除外） 耐焊接热： | +260 °C/10 s，符合 IEC 68-2-20 工作温度： | -40°C 至 +85°C 节距： | 5.08mm ### 标准EN 60127, IEC 127-3//3, DIN-VDE 0820### 印刷电路板线端 - 超微型### 印刷电路板线端所有熔丝均为热塑聚酰胺主体

Microfuse 熔丝 - MSF 和 MST 系列

微型熔丝，用于焊接到印刷电路板或载体。

快熔式 MSF 或延时 MST 熔丝。 低断开容量。

### 标准

EN 60127, IEC 127-3//3, DIN-VDE 0820

### 印刷电路板线端

所有熔丝均为热塑聚酰胺主体

欧时:

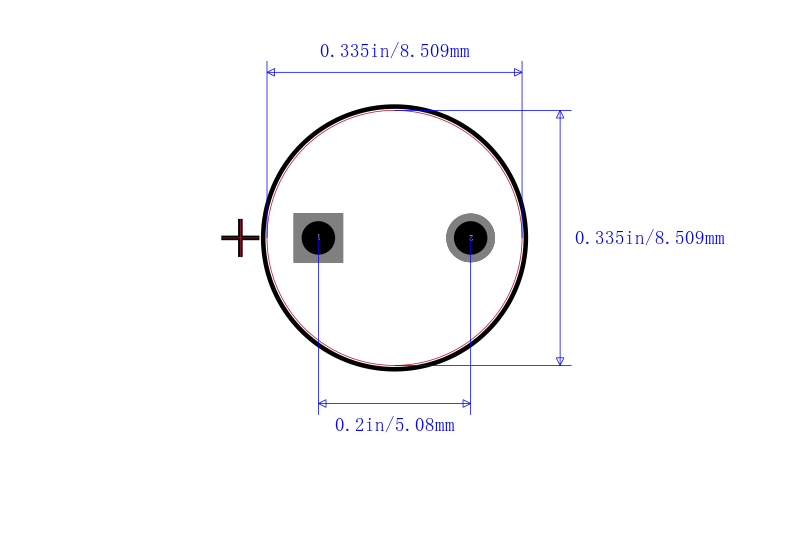

Schurter 4A 径向 带引线的 PCB 固定熔断器 0034.6020, F熔断速度, 250V ac, 8.5mm直径, 8.5mm高

艾睿:
Be protected by adding a subminiature 0034.6020 fuse developed by Schurter. This device has a current rating of 4. Its maximum power dissipation is 1.68 W. This device has a maximum power dissipation of 1.68 W. This fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 250 VDC. Its fuse is made from thermoplastic. This product is 8.5 mm tall with a diameter of 8.5 mm.

Allied Electronics:
Fuse; Subminiature; Quick-Acting; 4 A; 250 VAC; 8.5x8.5mm; 2-Pin; Short; PCB Mnt

安富利:
MSF 250 FUSE 4A F

Chip1Stop:
Fuse Subminiature Fast Acting 4A 250V 8.5 X 8.5mm Thermoplastic Bag CCC/cULus

TME:
Fuse: fuse; quick blow; 4A; 250VAC; TR5; MSF

Verical:
Fuse Subminiature Fast Acting 4A 250V Radial 8.5 X 8.5mm Thermoplastic Bag CCC/cULus

Newark:
# SCHURTER  0034.6020  Fuse, PCB Leaded, 4 A, 250 VAC, MSF 250 Series, Fast Acting, Radial Leaded

MASTER:
MSF 250 FUSE 4A F

Online Components:
MSF 250 FUSE 4A F

Electro Sonic:
MSF 250 FUSE 4A F

CDI:
MSF 250 FUSE 4A F
