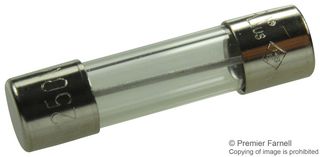

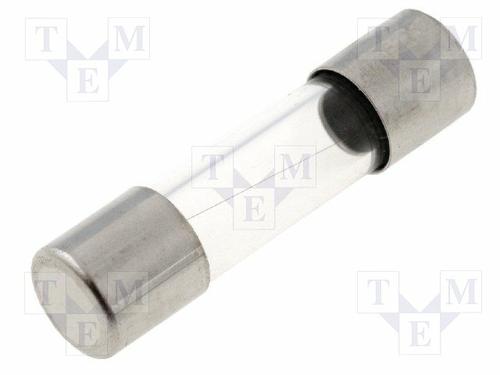

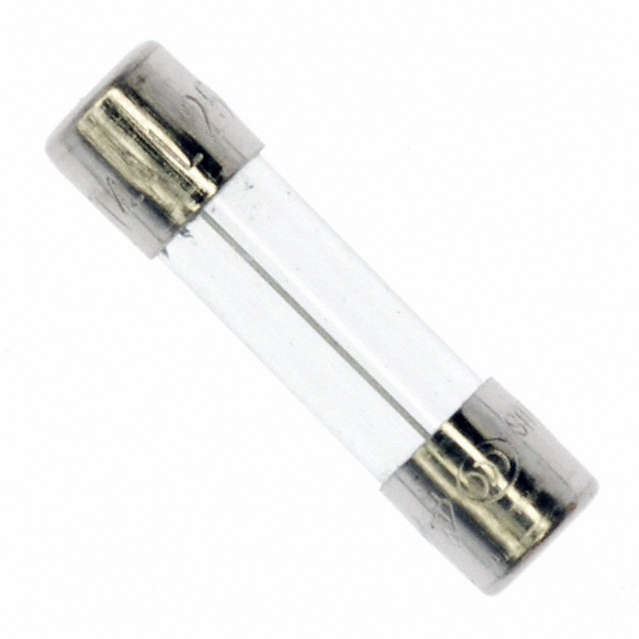

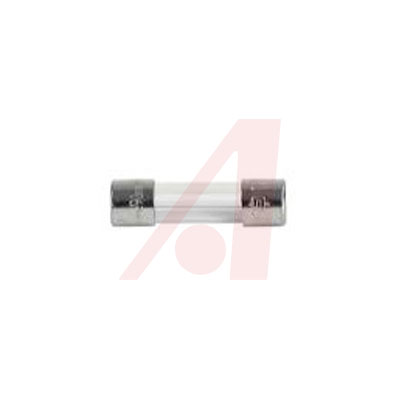

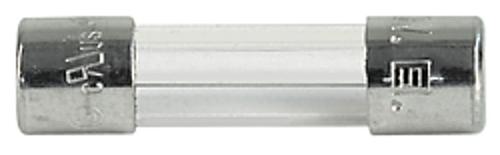

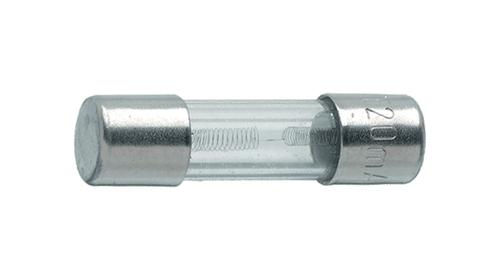

SCHURTER 0034.3130 Fuse, Cartridge, FST Series, 20A, 250V, 5mm x 20mm, 0.2" x 0.79", 200A
The is a 20A/250VAC time-lag anti-surge Non-resettable Fuse with glass tube and nickel-plated copper alloy end caps. This FST-series fuse features low breaking capacity. Provides low voltage primary and secondary protection. Devices meet applicable international safety standards. Used for primary protection in equipment.
- .
- 60mV Typical voltage drop
- .
- 4200mW Typical power dissipation 1.5 ln
- .
- -55 to 125°C Ambient air temperature range
额定电压DC 250 V
额定电压AC 250 V
额定电流 20 A
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 4.2 W
额定电压 250 V
额定电压AC Max 250 V
封装 5mm x 20mm
长度 20 mm
宽度 5 mm
直径 5.20 mm
封装 5mm x 20mm
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Box
制造应用 Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536100040
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0034.3130 Schurter | 当前型号 | 当前型号 |
0034.3130.PT Schurter | 完全替代 | 0034.3130和0034.3130.PT的区别 |
34.313 Schurter | 功能相似 | 0034.3130和34.313的区别 |
0034.3130.G Schurter | 功能相似 | 0034.3130和0034.3130.G的区别 |
