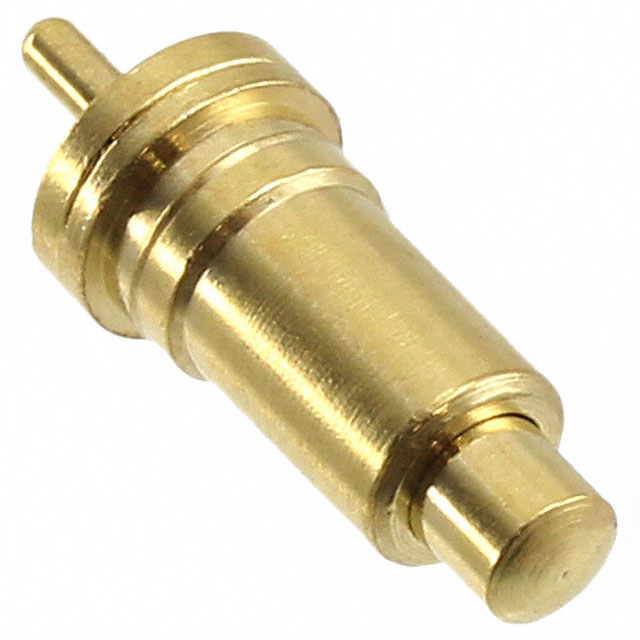

MILL MAX  0861-0-15-20-82-14-11-0  弹簧连接器, 触尖, 13.335MM

The from Mill Max is a discrete power spring loaded pin contacts. This rugged large scale spring-loaded Pogo pin contact features a 0.045" 1.14mm mid-stroke and 0.090" 2.29mm maximum stroke, endurance of 1,000,000cycles and a rated current of 9A at 10°C temperature rise. The spring pin has large diameter plungers, bodies and bases to provide the mechanical strength required for rugged applications such as blind-mating of components, drop-in charging systems and quick-connect assemblies where sliding or rotating action is involved. Best choice for heavy duty, high reliability spring pin requirements.

.

Solder mount in 0.043 minimum mounting hole

.

Force at mid stroke is 100g

.

Initial force pre-load is 25g

.

Copper alloy with gold finish sleeve & plunger material

.

Gold plated stainless steel spring

.

Maximum contact resistance is 20mohm

.

Operating temperature range from -55°C to +125°C
