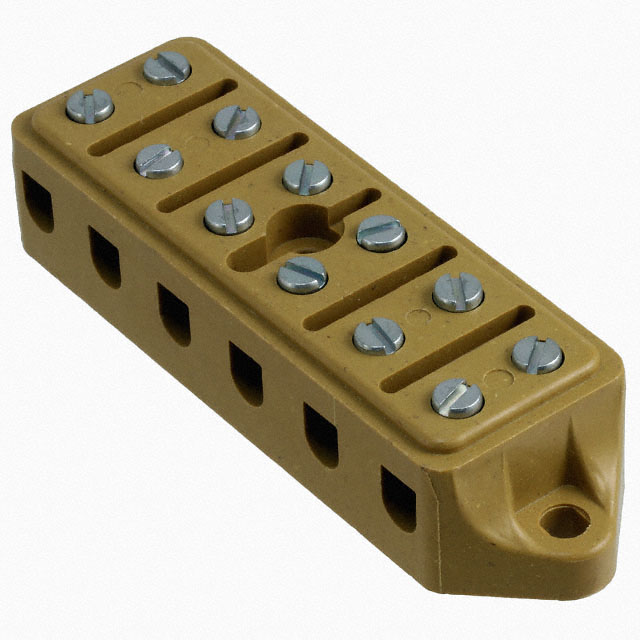

Conn Feed-Through Terminal Block 12POS Screw Panel Mount 25A
Conn Feed-Through Terminal Block 12 POS Screw Panel Mount 25A
得捷:
CONN BARRIER STRIP 6CIRCUIT
艾睿:
Conn Feed-Through Terminal Block 12 POS Screw Panel Mount 25A
安富利:
Conn Feed-Thru 12 POS Screw Panel Mount 25A
Chip1Stop:
Conn Feed-Through Terminal Block 12 POS Screw Panel Mount 25A
Verical:
Conn Feed-Through Terminal Block 12 POS Screw Panel Mount 25A
MASTER:
Conn Feed-Through Terminal Block 12 POS Screw Panel Mount 25A
Online Components:
Conn Feed-Through Terminal Block 12 POS Screw Panel Mount 25A
Electro Sonic:
Conn Feed-Through Terminal Block 12 POS Screw Panel Mount 25A
触点数 12
线规 12AWG ~ 22AWG
排数 2
电路数 6
易燃性等级 UL 94 5VA
针脚数 6
额定电流Max 25 A
工作温度Max 130 ℃
工作温度Min -60 ℃
额定电压Max 300 V
额定电压 300 V
工作电压Max 300 V
安装方式 Panel, Screw
长度 90.0 mm
宽度 25.0 mm
高度 17.5 mm
外壳颜色 Beige
颜色 Yellow
工作温度 -60℃ ~ 130℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
