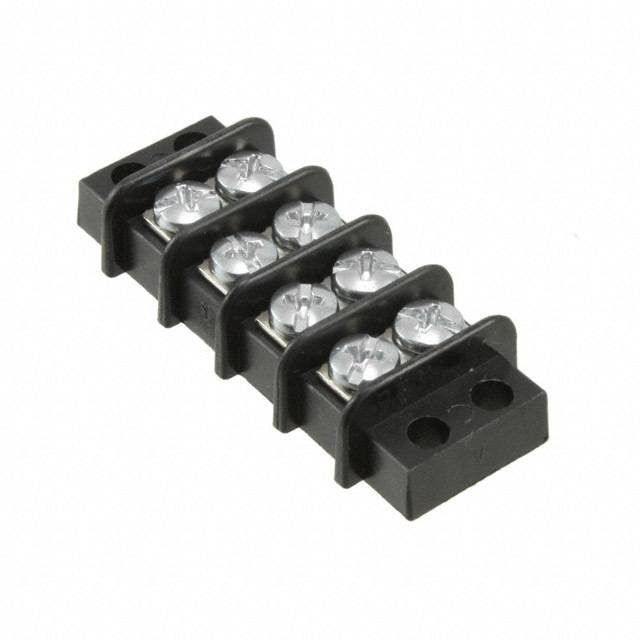

Conn Barrier Strip 8POS 9.53mm Screw ST Panel Mount

Connecting one or more circuits together, this barrier strip PCB terminal block from is a must-have! This is a 2-row connector. It has a straight body orientation. Its pitch is 9.53 mm. 0387700104 is housed in polybutylene terephthalate. This product is 54.7 mm long, 22.4 mm tall and 11.2 mm deep. It uses the screw termination method.

0387700104中文资料参数规格
技术参数

触点数 8

线规 14AWG ~ 22AWG

排数 2

电路数 4

额定电流Max 15 A

额定电压Max 300 V

额定电压 300 V

工作电压Max 300 V

封装参数

安装方式 Panel, Screw

外形尺寸

长度 54.7 mm

宽度 11.2 mm

高度 22.4 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Steel

其他

产品生命周期 Unknown

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0387700104
型号: 0387700104
制造商: Molex 莫仕
描述:Conn Barrier Strip 8POS 9.53mm Screw ST Panel Mount
