0387007503

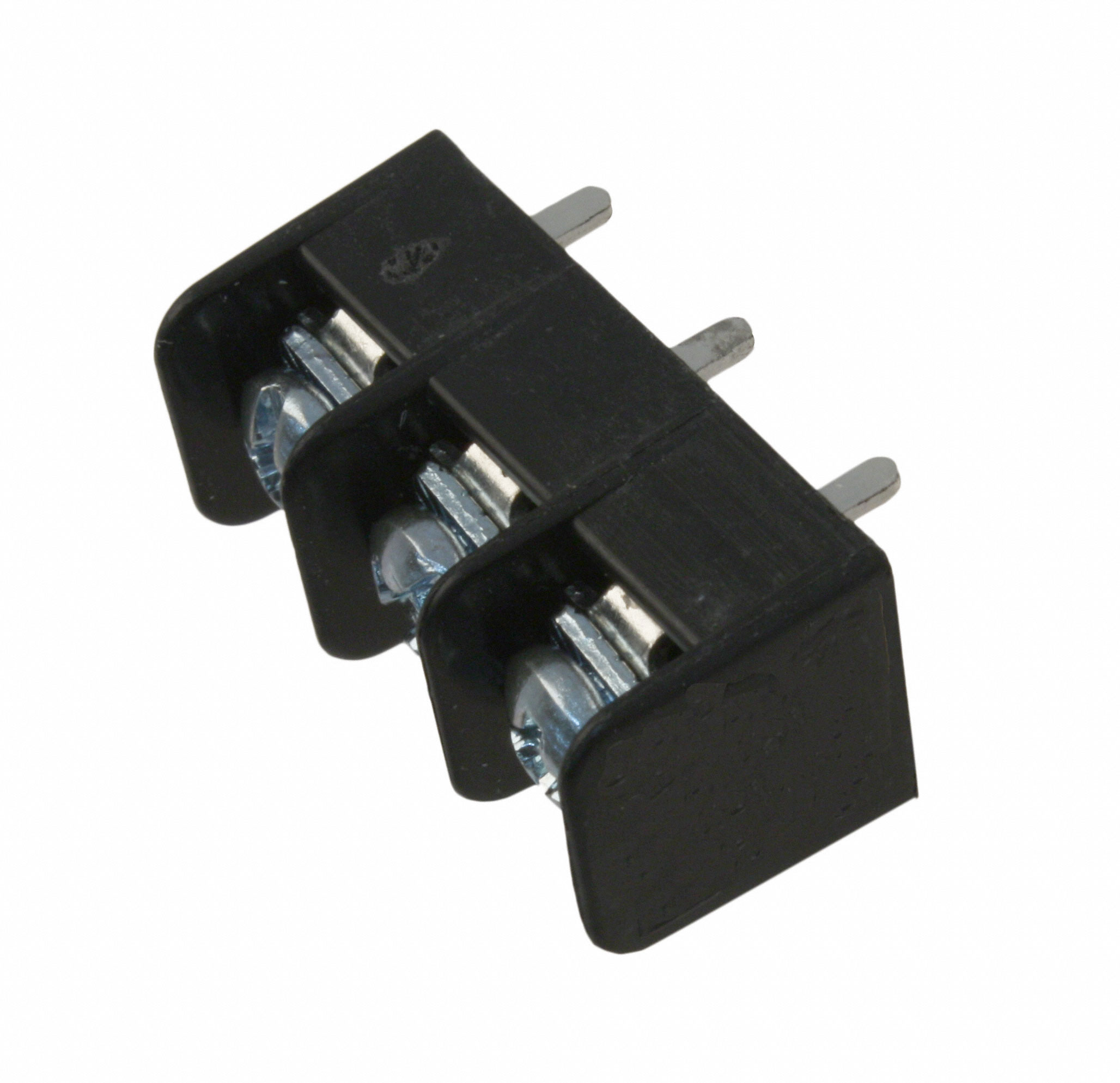

8.26毫米（ .325 “ ）间距博™ PCB端子板，没有安装完， 3电路 8.26mm .325" Pitch Beau™ PCB Terminal Strip, without Mounting Ends, 3 Circuits

Connecting one or more circuits together, this barrier strip PCB terminal block from is a must-have! Its pitch is 8.25 mm. It has a straight body orientation. It has a maximum voltage rating of 300 V. This is a 1-row connector. This device has a maximum current rating of 20 A/contact. 0387007503 is housed in thermoplastic. Its wire is 12-22 AWG. It uses the solder termination method. This product is 26.9 mm long, 12.7 mm tall and 12.7 mm deep. This quick disconnect terminal has an operating temperature of -40 to 130 °C.
