0008520124

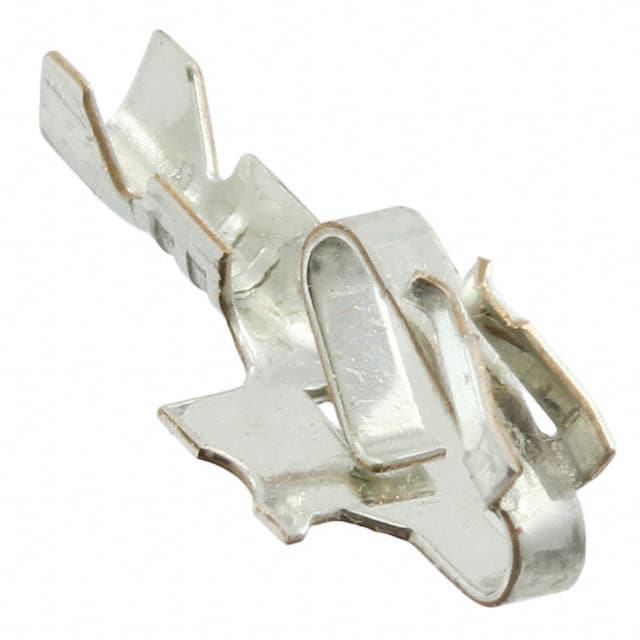

0008520124图片1
0008520124图片2
0008520124图片3
0008520124概述

Trifurcon ™压接端子7258 , 22-26 AWG ,卷带,锡磷青铜(锡) Trifurcon™ Crimp Terminal 7258, 22-26 AWG, Reel, Phosphor Bronze Tin Sn

Make the perfect wired connection with this connector contact from , a simple and effective form of connection binding. It has a socket type gender. It has a straight body orientation. This has a Connector Headers and PCB Receptacles connector. It uses the crimp termination method. This connector contact has an operating temperature range of 0 °C to 75 °C. This product is 13.7 mm long and 2.72 mm. Its wire is 22-26 AWG.

0008520124中文资料参数规格
技术参数

触点数 1

极性 Female

线规 22AWG ~ 26AWG

工作温度Max 75 ℃

工作温度Min 0 ℃

接触电阻Max 6 mΩ

封装参数

封装 -

外形尺寸

封装 -

物理参数

触点材质 Phosphor Bronze

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买0008520124
型号: 0008520124
制造商: Molex 莫仕
描述:Trifurcon ™压接端子7258 , 22-26 AWG ,卷带,锡磷青铜(锡) Trifurcon™ Crimp Terminal 7258, 22-26 AWG, Reel, Phosphor Bronze Tin Sn
