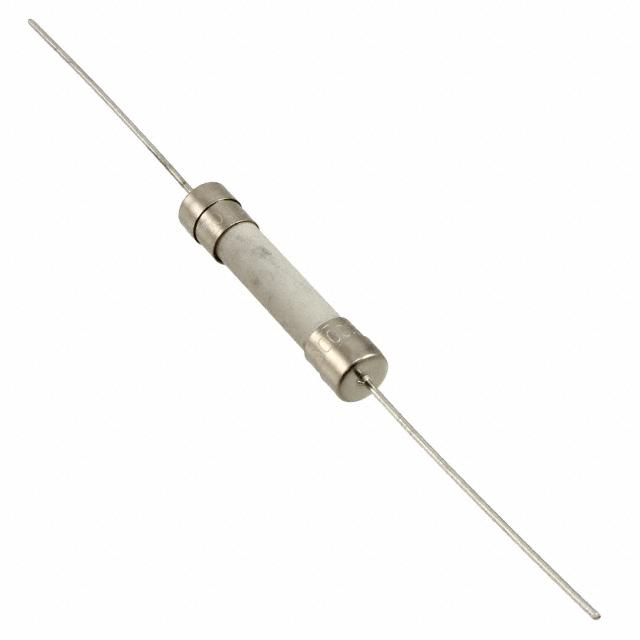

Fuse Miniature Fast Acting 0.5A 1000V Axial 6.3 X 32mm Ceramic Bulk CE/cULus
Be protected by adding a miniature fuse developed by . This device has a current rating of 0.5. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0508.500MXEP fuse has an axial termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 1000 VAC and the maximum DC voltage rating is 1000 VDC. This product is 32.72 mm long with a diameter of 6.99 mm. Its fuse is made from ceramic.
额定电压DC 1000 V
额定电压AC 1000 V
额定电流 500 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 1000 V
额定电压DC Max 1000 V
额定电压AC Max 1000 V
安装方式 Through Hole
引脚数 2
封装 3AB, 3AG, 1/4" x 1-1/4" Axial
封装 3AB, 3AG, 1/4" x 1-1/4" Axial
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
