0039000296

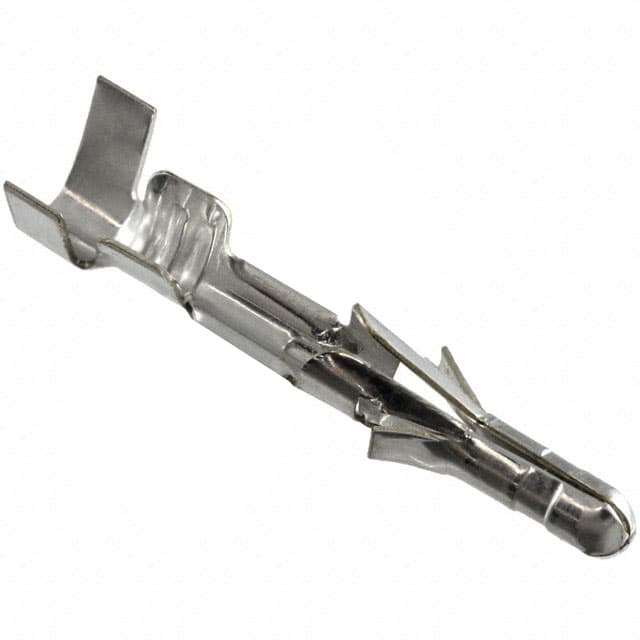

2.36毫米（ .093 “ ）直径，标准.093 ”引脚和插口压接端子， 1190系列，男性，锡（Sn ）在铜镀银黄铜触点， 14-20 AWG ，卷 2.36mm .093" Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1190, Male, with Tin Sn over Copper Plated Brass Contact, 14-20 AWG, Reel

Pin Contact Tin 14-20 AWG Crimp

得捷:
CONN PIN 14-20AWG CRIMP TIN

艾睿:
Install this 0039000296 connector contact from Molex as a preventative measure against premature failure of your connections. It has a straight body orientation. This device has a maximum current rating of 12 A. This has a Connector Headers and PCB Receptacles connector. It uses the crimp termination method. This connector contact has an operating temperature range of -40 °C to 105 °C. This product is 22 mm long, 4.8 mm tall and 5.3 mm deep. Its wire is 14-20 AWG.

安富利:
Contact PIN Crimp ST Cable Mount Reel
