0431781002

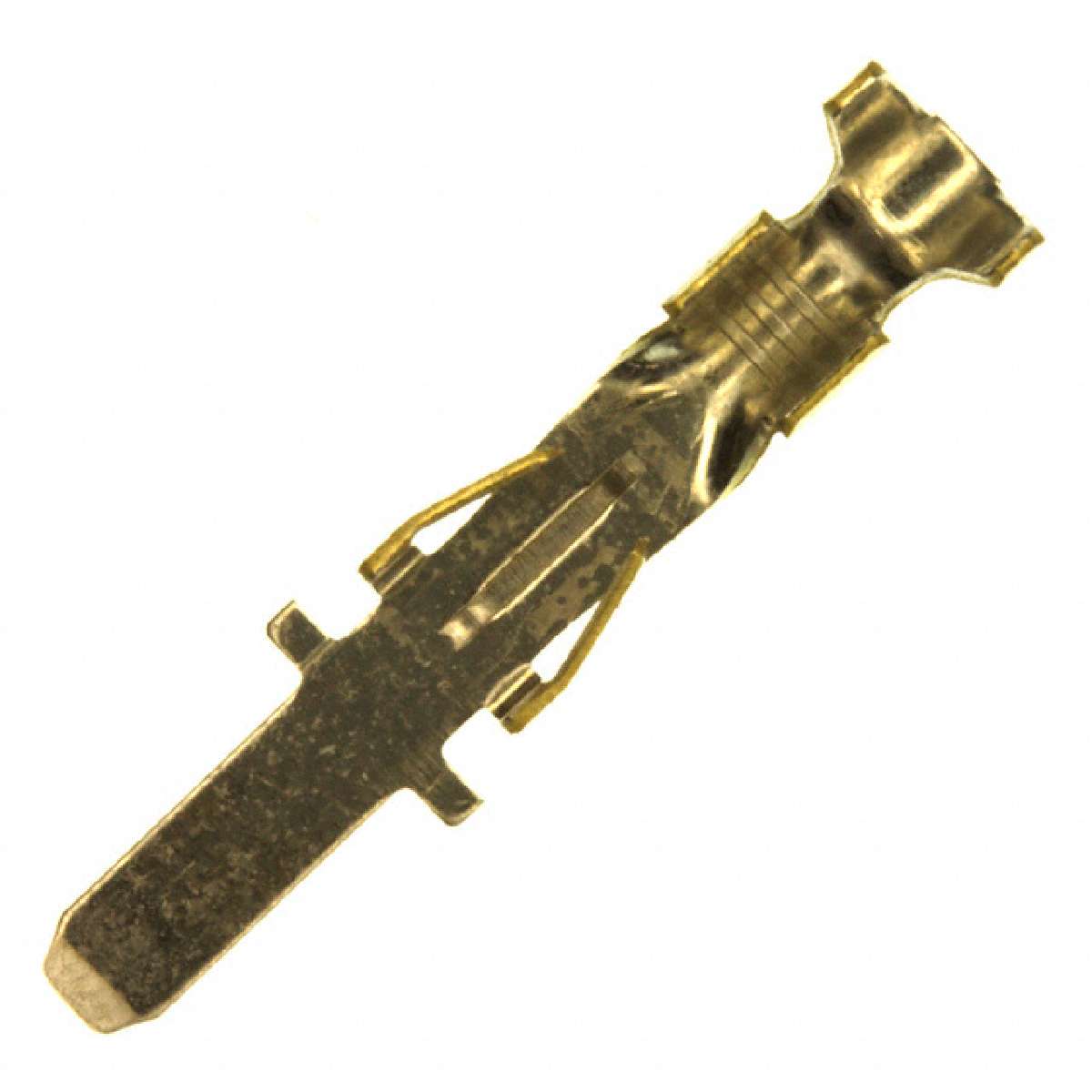

0431781002图片1

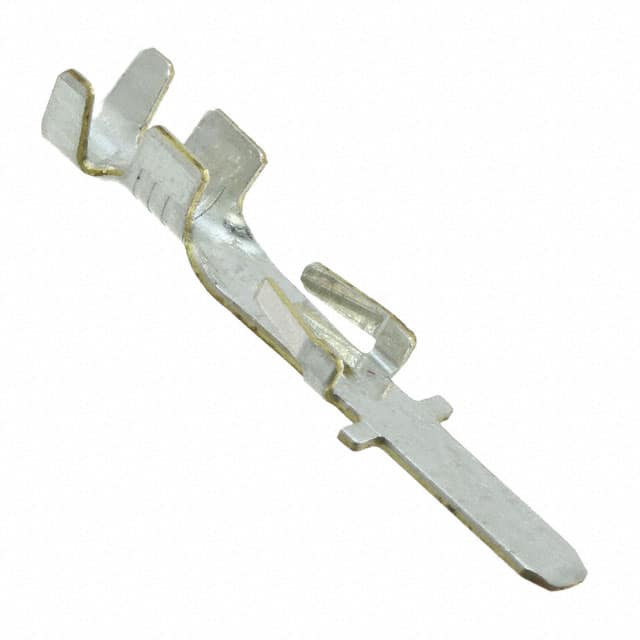

0431781002图片2
0431781002图片3
0431781002图片4
0431781002图片5
0431781002图片6
0431781002概述

Sabre Crimp Terminal, Male, with Tin Sn Plated Brass Contact, 18AWG, 3.3mm .130" Max. Insulation Diameter, Reel...

插片式触头 18AWG 压接 公头插片式 锡


得捷:
TERM BLADE MALE 18AWG TIN


艾睿:
A solid mechanical connection is ideal for any cable connection, this 0431781002 connector contact manufactured from Molex will get the job don. It has a straight body orientation. This device has a maximum current rating of 18 A. This has a Connector Headers and PCB Receptacles connector. It uses the crimp termination method. Its wire is 18 AWG. This connector contact has an operating temperature range of -40 °C to 75 °C. This product is 27.03 mm long, 5.68 mm tall and 6.17 mm deep.


Chip1Stop:
Contact PIN Crimp ST Cable Mount Reel


Verical:
Contact PIN Crimp ST Cable Mount 18AWG Sabre™ T/R


0431781002中文资料参数规格
技术参数

线规 18 AWG

额定电流Max 18 A

工作温度Max 75 ℃

工作温度Min -40 ℃

额定电压Max 600 V

接触电阻Max 10 mΩ

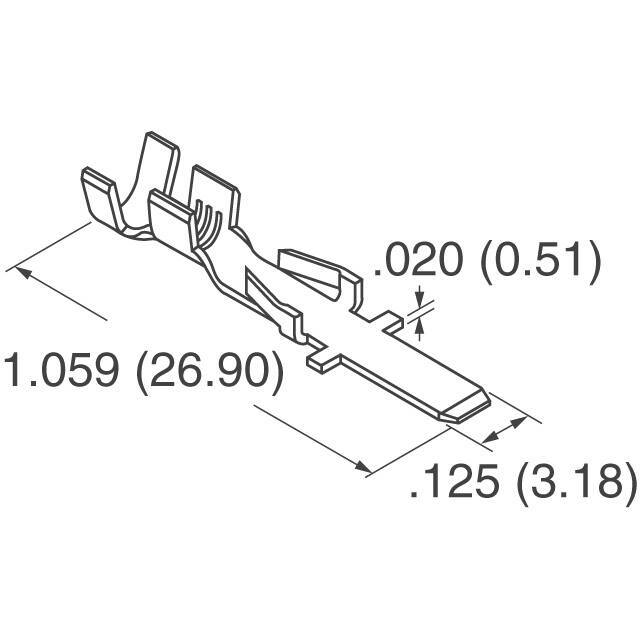

外形尺寸

长度 27.03 mm

宽度 6.17 mm

高度 5.68 mm

物理参数

触点材质 Brass

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买0431781002
型号: 0431781002
制造商: Molex 莫仕
描述:Sabre Crimp Terminal, Male, with Tin Sn Plated Brass Contact, 18AWG, 3.3mm .130" Max. Insulation Diameter, Reel...
