0357252411

0357252411图片1
0357252411图片2
0357252411图片3
0357252411概述

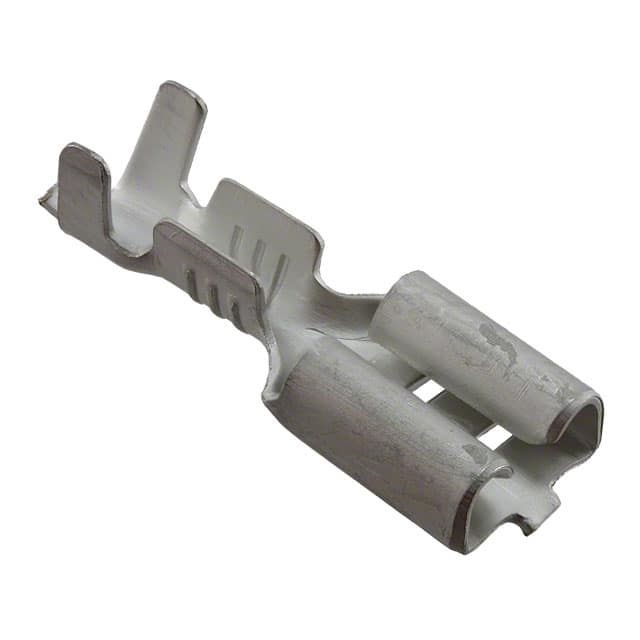

快速断开,女, 14-18 AWG ( 2.00 - 0.80mm² )丝,金属带,标签6.35由0.81毫米( .250由.032 “ ) Quick Disconnect, Female, for 14-18 AWG 2.00 - 0.80mm² Wire, Metal Strip, Tab 6.35 by 0.81mm .250 by .032"

0.250" 6.35mm Quick Connect Female 14-18 AWG Crimp Connector Non-Insulated


得捷:
CONN QC RCPT 14-18AWG 0.250


艾睿:
Look no further than the quick disconnect terminal 0357252411 wire terminal from Molex for applications requiring terminal connections. It has a female type gender. This product is 19.2 mm long and 7.65 mm. This wire terminal has an operating temperature of -40 to 120 °C. Its wire is 14-18 AWG.


0357252411中文资料参数规格
技术参数

线规 14AWG ~ 18AWG

工作温度Max 120 ℃

工作温度Min -40 ℃

额定电压Max 300 V

外形尺寸

长度 19.20 mm

物理参数

触点材质 Brass

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0357252411
型号: 0357252411
制造商: Molex 莫仕
描述:快速断开,女, 14-18 AWG ( 2.00 - 0.80mm² )丝,金属带,标签6.35由0.81毫米( .250由.032 “ ) Quick Disconnect, Female, for 14-18 AWG 2.00 - 0.80mm² Wire, Metal Strip, Tab 6.35 by 0.81mm .250 by .032"
替代型号0357252411
型号/品牌 代替类型 替代型号对比

0357252411

Molex 莫仕

当前型号

当前型号

1287-STR

Keystone Electronics

功能相似

0357252411和1287-STR的区别
