0500988000

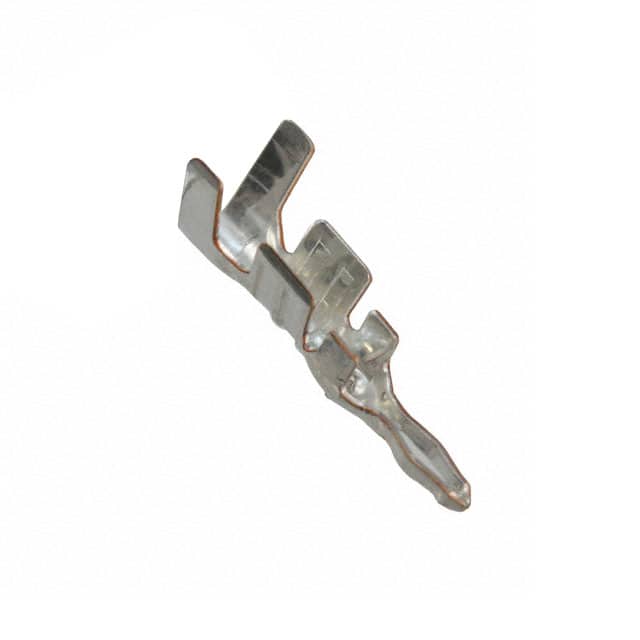

0500988000图片1
0500988000图片2
0500988000图片3
0500988000图片4
0500988000图片5
0500988000概述

4.00毫米( .157 “ )间距板在压接端子50098 , 18-22 AWG ,卷,为51036房 4.00mm .157" Pitch Board-In Crimp Terminal 50098, 18-22 AWG, Reel, for 51036 Housing

\- 引脚 触点 锡 18-22 AWG 压接


得捷:
CONN PIN 18-22AWG CRIMP TIN


立创商城:
0500988000


艾睿:
Never worry about a loose connection again with this 0500988000 connector contact from Molex. It has a straight body orientation. This device has a maximum current rating of 5 A. This has a Connector Headers and PCB Receptacles connector. This connector contact has a minimum operating temperature of -40 °C and a maximum of 105 °C. Its wire is 18-22 AWG. This product is 9.9 mm long, 3.3 mm tall and 3.2 mm deep. It uses the crimp termination method.


安富利:
Contact PIN Crimp ST Cable Mount Reel


Verical:
Contact PIN Crimp ST Cable Mount 18-22AWG Reel


0500988000中文资料参数规格
技术参数

线规 18AWG ~ 22AWG

额定电流Max 5 A

工作温度Max 105 ℃

工作温度Min -40 ℃

接触电阻Max 5 mΩ

封装参数

封装 ~

外形尺寸

高度 3.3 mm

封装 ~

物理参数

触点材质 Phosphor Bronze

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买0500988000
型号: 0500988000
制造商: Molex 莫仕
描述:4.00毫米( .157 “ )间距板在压接端子50098 , 18-22 AWG ,卷,为51036房 4.00mm .157" Pitch Board-In Crimp Terminal 50098, 18-22 AWG, Reel, for 51036 Housing
