0190170037

0190170037图片1
0190170037图片2

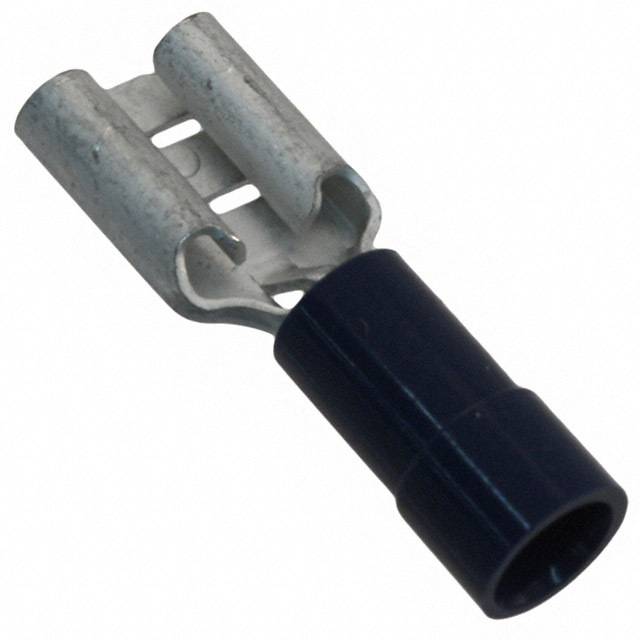

0190170037图片3
0190170037图片4
0190170037概述

InsulKrimp ™快速断开,女, 14-16 ( 2.00-1.30 )线,包装盒,标签6.35毫米( .250“ )× 0.81毫米( .032 ” ) InsulKrimp™ Quick Disconnect, Female, for 14-16 2.00-1.30 Wire, Box, Tab 6.35mm.250" x 0.81mm .032"

快速连接


得捷:
CONN QC RCPT 14-16AWG 0.250


贸泽:
Terminals BREC-DSC 16-14 250X032 VYL BLU


艾睿:
Using the quick disconnect terminal 0190170037 wire terminal from Molex is the easiest way to connect to your terminal blocks. It has a female type gender. This wire terminal has an operating temperature of -50 to 105 °C. Its wire is 14-16 AWG. This product is 22.35 mm long and 7.62 mm.


Verical:
Quick Disconnect Terminal 14-16AWG Brass Blue F 22.35mm Electro Tin InsulKrimp™ Bag


AMEYA360:
0.250" 6.35mm Quick Connect Female 14-16 AWG Crimp Connector Non-Mating End Insulated


0190170037中文资料参数规格
技术参数

极性 Female

线规 14AWG ~ 16AWG

工作温度Max 105 ℃

工作温度Min -50 ℃

额定电压Max 600 V

外形尺寸

长度 21.97 mm

物理参数

颜色 Blue

触点材质 Brass

其他

产品生命周期 Unknown

包装方式 Bag

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0190170037
型号: 0190170037
制造商: Molex 莫仕
描述:InsulKrimp ™快速断开,女, 14-16 ( 2.00-1.30 )线,包装盒,标签6.35毫米( .250“ )× 0.81毫米( .032 ” ) InsulKrimp™ Quick Disconnect, Female, for 14-16 2.00-1.30 Wire, Box, Tab 6.35mm.250" x 0.81mm .032"
替代型号0190170037
型号/品牌 代替类型 替代型号对比

0190170037

Molex 莫仕

当前型号

当前型号

0190170041

莫仕

完全替代

0190170037和0190170041的区别

0190170074

莫仕

完全替代

0190170037和0190170074的区别

DV14-250P-C

泛达

类似代替

0190170037和DV14-250P-C的区别
