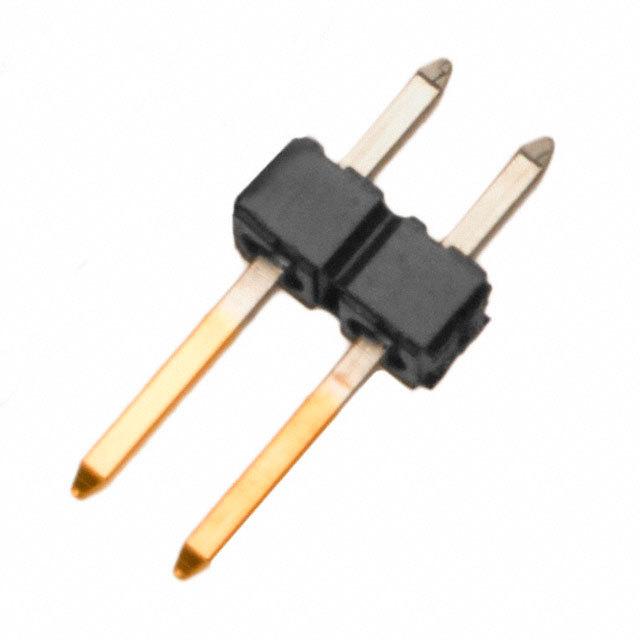

2.54毫米（ .100 ）间距KK®头，分离式，立式， 2电路， 0.38μm （ 15μ ），金（Au ）选择性镀层，配合针脚长度8.13毫米（ 0.320 ） ，与斜塔PC尾巴 2.54mm .100 Pitch KK® Header, Breakaway, Vertical, 2 Circuits, 0.38μm 15μ Gold Au Selective Plating, Mating Pin Length 8.13mm .320, with Kinked PC Tails
针座 通孔 2 位置 0.100"（2.54mm）
得捷:
CONN HEADER VERT 2POS 2.54MM
艾睿:
Reduce safety concerns with this unshrouded 0022285024 header connector from Molex which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 2 contacts that are made out of brass and plated with gold over nickel. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 250 V. Its pitch is 2.54 mm. This is a 1-row connector. This device has a maximum current rating of 4 A/contact. It uses the solder termination method. This connector has an operating temperature of -40 to 80 °C. This product is 5.08 mm long, 10.42 mm tall and 2.49 mm deep. 0022285024 is housed in black nylon.
安富利:
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Bag
Verical:
Conn Unshrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole KK® Bag
