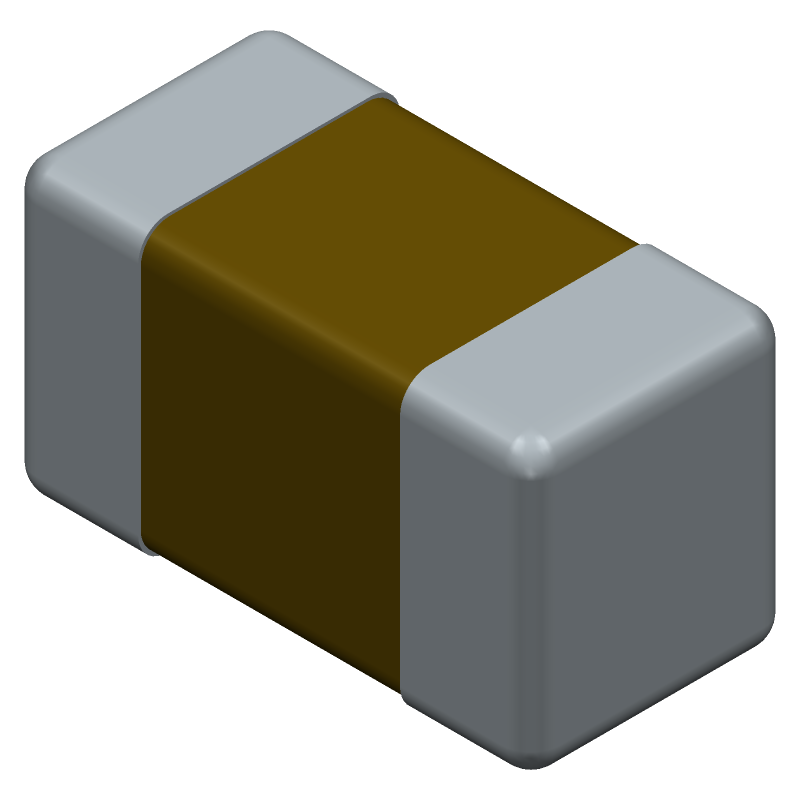

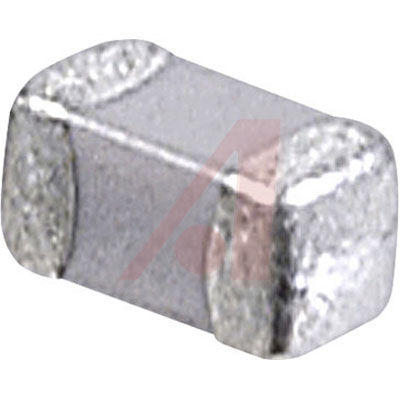

AVX 04025A181JAT2A 多层陶瓷电容器, 表面贴装, 180 pF, ± 5%, C0G / NP0, 50 V, 0402 [1005 公制]
The multilayer ceramic capacitors with EIA class I, C0G NP0 dielectric material are highly stable ceramic chip capacitors for general purpose applications. This multilayer ceramic capacitor is a monolithic block of ceramic containing two sets of offset, interleaved planar electrodes that extend to two opposite surfaces of ceramic dielectric.
- .
- Capacitance value ranges from 0.5pF to 0.1µF
- .
- EIA 0101, 0201, 0402, 0603, 0805, 1206, 1210, 1812, 1825, 2220, 2225 case sizes available
- .
- Rated DC voltage of 6.3V, 10V, 16V, 25V, 50V, 100V, 200V, 500V
- .
- ±0.10pF, ±0.25pF, ±0.50pF, ±1%, ±2%, ±5% and ±10% tolerance
- .
- Nickel Ni and tin Sn plated terminations
- .
- Load life of 1000h at 125˚C
- .
- Operating temperature range from -55˚C to 125˚C
额定电压DC 50 V
绝缘电阻 100 GΩ
电容 180 pF
容差 ±5 %
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 2
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.56 mm
封装公制 1005
封装 0402
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
温度系数 ±0.00 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 Industrial, 电源管理, 工业, Portable Devices, 通用, Consumer Electronics, 消费电子产品, 便携式器材, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
04025A181JAT2A AVX 艾维克斯 | 当前型号 | 当前型号 |
GRM1555C1H181JA01D 村田 | 类似代替 | 04025A181JAT2A和GRM1555C1H181JA01D的区别 |
CGA2B2C0G1H181J050BA 东电化 | 类似代替 | 04025A181JAT2A和CGA2B2C0G1H181J050BA的区别 |
LD025A181JAB2A 艾维克斯 | 类似代替 | 04025A181JAT2A和LD025A181JAB2A的区别 |
