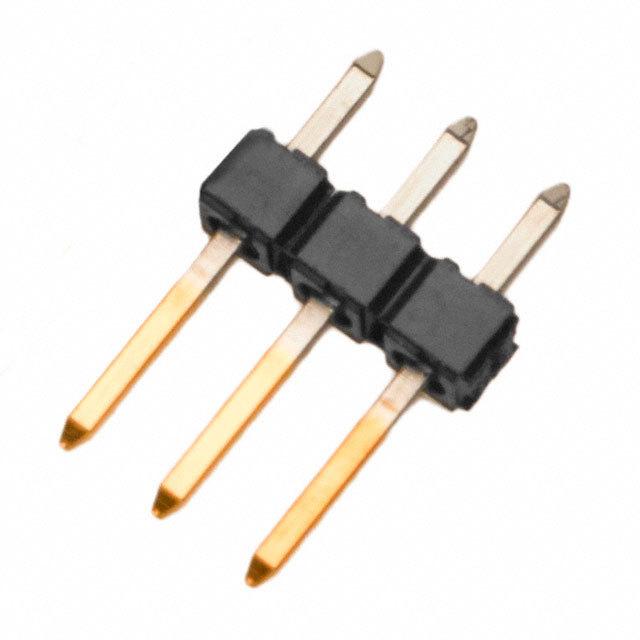

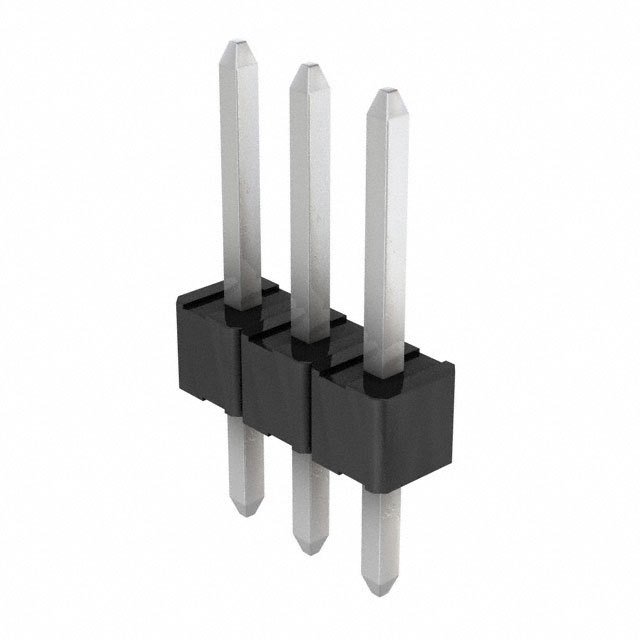

2.54毫米（ .100 ）间距KK®头，分离式，立式， 3电路，锡（Sn ）镀层，配合针脚长度8.13毫米（ 0.320 ） 2.54mm .100 Pitch KK® Header, Breakaway, Vertical, 3 Circuits, Tin Sn Plating, Mating Pin Length 8.13mm .320
针座 通孔 3 位置 0.100"（2.54mm）
得捷:
CONN HEADER VERT 3POS 2.54MM
艾睿:
Think of Molex&s;s unshrouded 0022284031 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 3 contacts that are made out of brass and plated with tin over nickel. This is a 1-row connector. Its pitch is 2.54 mm. It has a straight body orientation. It has a maximum voltage rating of 250 VDC|250VAC. It has a header type gender. This device has a maximum current rating of 4 A/contact. 0022284031 is housed in black nylon. This product is 7.62 mm long, 10.42 mm tall and 2.49 mm deep. This connector has an operating temperature of -40 to 80 °C. It uses the solder termination method.
安富利:
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Thru-Hole Bag
Verical:
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Top Entry Thru-Hole KK® Bag
