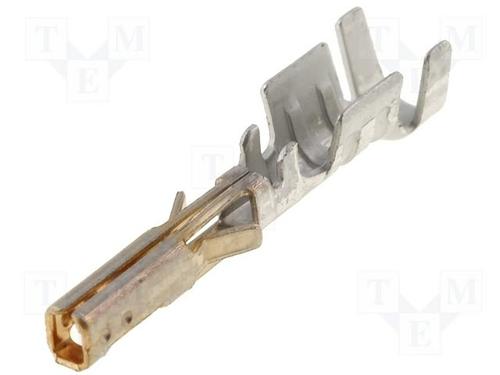

0430300009图片1

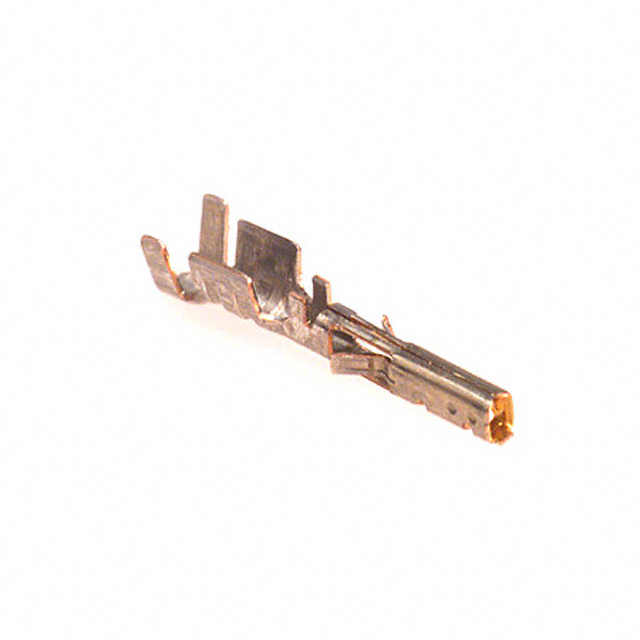

0430300009图片2

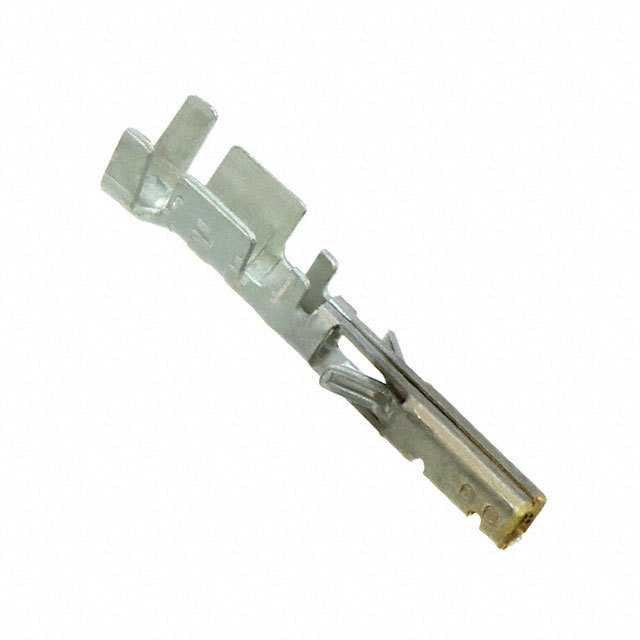

0430300009图片3
0430300009图片4
0430300009图片5
0430300009图片6
0430300009图片7
0430300009图片8
0430300009概述

微飞度3.0 ™压接端子,女,有选择金(Au )电镀锡/铜合金触点, 20-24 AWG ,袋 Micro-Fit 3.0™ Crimp Terminal, Female, with Select Gold Au Plated Tin/Brass Alloy Contact, 20-24 AWG, Bag

Socket Contact Gold 20-24 AWG Crimp Power


立创商城:
0430300009


艾睿:
This 0430300009 connector contact from Molex will produce a strong wired connection. It has a socket type gender. It has a straight body orientation. This device has a maximum current rating of 5 A. This has a Connector Headers and PCB Receptacles connector. Its wire is 20-24 AWG. It uses the crimp termination method. This product is 11.25 mm long, 2.29 mm tall and 2.54 mm deep. This connector contact has a minimum operating temperature of -40 °C and a maximum of 105 °C.


安富利:
Contact F Crimp ST Cable Mount Bag


Chip1Stop:
Contact F Crimp ST Cable Mount Bag


Verical:
Contact SKT Crimp ST Cable Mount 20-24AWG Micro-Fit 3.0™ Bag


0430300009中文资料参数规格
技术参数

触点数 1

线规 20AWG ~ 24AWG

触点电镀 Gold

额定电流Max 5 A

工作温度Max 105 ℃

工作温度Min -40 ℃

接触电阻Max 10 mΩ

封装参数

封装 -

外形尺寸

长度 11 mm

宽度 2.54 mm

高度 2.29 mm

封装 -

物理参数

触点材质 Phosphor Bronze

其他

产品生命周期 Unknown

包装方式 Bag

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0430300009
型号: 0430300009
制造商: Molex 莫仕
描述:微飞度3.0 ™压接端子,女,有选择金(Au )电镀锡/铜合金触点, 20-24 AWG ,袋 Micro-Fit 3.0™ Crimp Terminal, Female, with Select Gold Au Plated Tin/Brass Alloy Contact, 20-24 AWG, Bag
替代型号0430300009
型号/品牌 代替类型 替代型号对比

0430300009

Molex 莫仕

当前型号

当前型号

0430300003

莫仕

功能相似

0430300009和0430300003的区别
