0039000073

0039000073图片1
0039000073图片2
0039000073图片3
0039000073图片4
0039000073图片5
0039000073概述

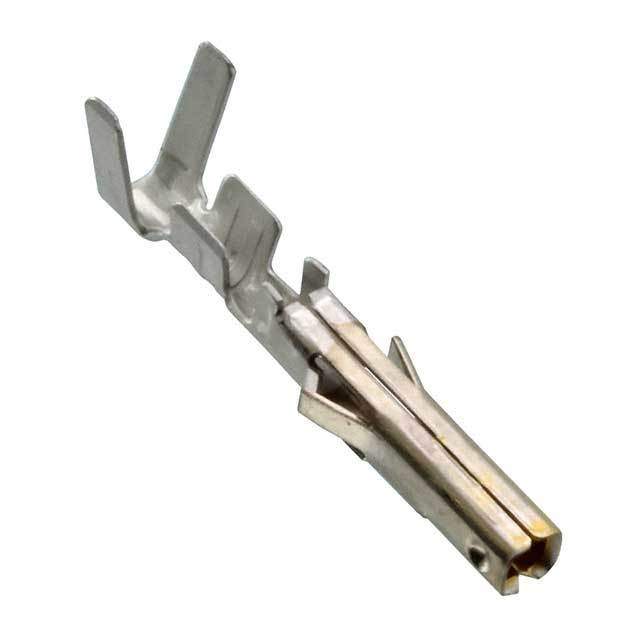

4.20毫米( .165 “ )间距微型飞度压接端子,女,有选择性的金(Au ) 4.20mm .165" Pitch Mini-Fit Crimp Terminal, Female, with Selective Gold Au

功率 插口 触点 镀金 18-24 AWG 压接


得捷:
CONN SOCKET 18-24AWG CRIMP GOLD


艾睿:
This 0039000073 connector contact from Molex provides a secure connection when joined with proper and appropriate connector housing. It has a socket type gender. It has a straight body orientation. This device has a maximum current rating of 9 A. This has a Connector Power connector. It uses the crimp termination method. This product is 14.7 mm long, 4.5 mm tall and 3.6 mm deep. Its wire is 18-24 AWG. This connector contact has a minimum operating temperature of -40 °C and a maximum of 105 °C.


Chip1Stop:
Contact SKT Crimp ST Cable Mount Mini-Fit®


Verical:
Contact SKT Crimp ST Cable Mount 18-24AWG Mini-Fit® T/R


0039000073中文资料参数规格
技术参数

线规 18AWG ~ 24AWG

额定电流Max 9 A

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压Max 600 V

接触电阻Max 10 mΩ

外形尺寸

高度 4.5 mm

物理参数

触点材质 Brass

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0039000073
型号: 0039000073
制造商: Molex 莫仕
描述:4.20毫米( .165 “ )间距微型飞度压接端子,女,有选择性的金(Au ) 4.20mm .165" Pitch Mini-Fit Crimp Terminal, Female, with Selective Gold Au
替代型号0039000073
型号/品牌 代替类型 替代型号对比

0039000073

Molex 莫仕

当前型号

当前型号

39-00-0074

莫仕

功能相似

0039000073和39-00-0074的区别

0039000074

莫仕

功能相似

0039000073和0039000074的区别
