0190190033

0190190033图片1
0190190033图片2

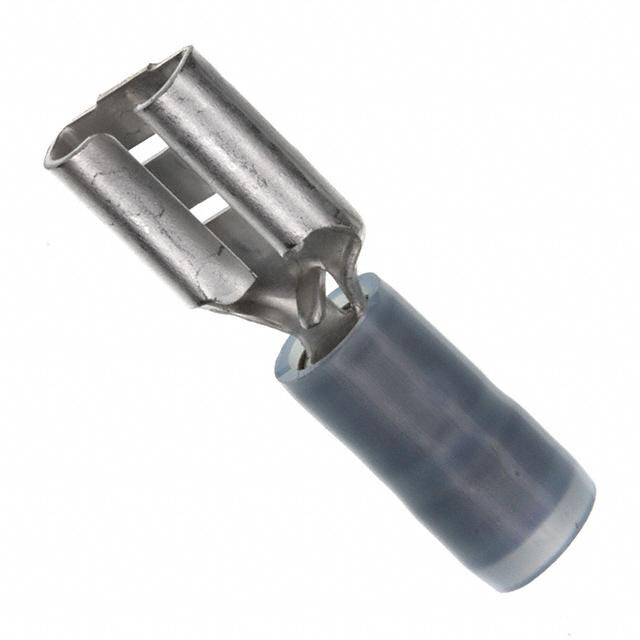

0190190033图片3
0190190033概述

Avikrimp ™快速断开,女, 14-16 ( 2.00-1.30 )线,玛拉胶带, Tab6.35mm ( .250“ )× 0.81毫米( .032 ” ) Avikrimp™ Quick Disconnect, Female, for 14-16 2.00-1.30 Wire, Mylar Tape, Tab6.35mm .250" x 0.81mm .032"

Make a proper connection between two terminal blocks using this quick disconnect terminal wire terminal from . It has a female type gender. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its wire is 14-16 AWG. This product is 22 mm long and 7.6 mm. This wire terminal has an operating temperature of -65 to 105 °C.

0190190033中文资料参数规格
技术参数

极性 Female

线规 14AWG ~ 16AWG

工作温度Max 105 ℃

工作温度Min -65 ℃

额定电压Max 300 V

封装参数

封装 -

外形尺寸

长度 21.97 mm

封装 -

物理参数

颜色 Blue

触点材质 Brass

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

海关信息

ECCN代码 EAR99

数据手册

在线购买0190190033
型号: 0190190033
制造商: Molex 莫仕
描述:Avikrimp ™快速断开,女, 14-16 ( 2.00-1.30 )线,玛拉胶带, Tab6.35mm ( .250“ )× 0.81毫米( .032 ” ) Avikrimp™ Quick Disconnect, Female, for 14-16 2.00-1.30 Wire, Mylar Tape, Tab6.35mm .250" x 0.81mm .032"
替代型号0190190033
型号/品牌 代替类型 替代型号对比

0190190033

Molex 莫仕

当前型号

当前型号

0190190031

莫仕

完全替代

0190190033和0190190031的区别

DV14-250P-C

泛达

类似代替

0190190033和DV14-250P-C的区别

DV14-250P-M

泛达

功能相似

0190190033和DV14-250P-M的区别
