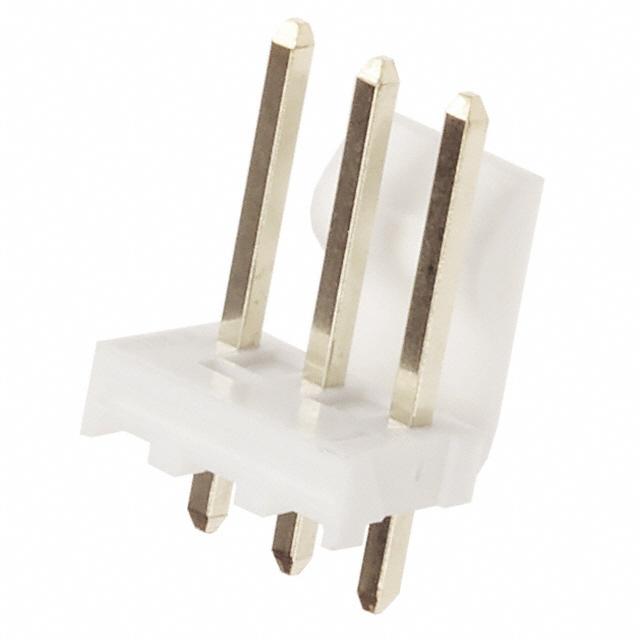

3.96毫米（ .156 “ ）间距KK固态头，垂直，摩擦锁， 3电路，锡（Sn ）镀层 3.96mm .156" Pitch KK Solid Header, Vertical, Friction Lock, 3 Circuits, Tin Sn Plating
针座 通孔 3 位置 0.156"（3.96mm）
得捷:
CONN HEADER VERT 3POS 3.96MM
艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this wire to board 0026604030 header connector from Molex. This HDR connector&s;s 3 contacts that are made out of brass and plated with tin over copper. It has a header type gender. This is a 1-row connector. It has a straight body orientation. Its pitch is 3.96 mm. It has a maximum voltage rating of 250 V. This device has a maximum current rating of 7 A/contact. This product is 11.73 mm long, 14.73 mm tall and 10.01 mm deep. 0026604030 is housed in natural polyester. It uses the solder termination method. This connector has an operating temperature of -40 to 80 °C.
安富利:
Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Bag
Chip1Stop:
Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole KKﾂｮ Bag
Verical:
Conn Wire to Board HDR 3 POS 3.96mm Solder ST Top Entry Thru-Hole KK® Bag
