0471518131

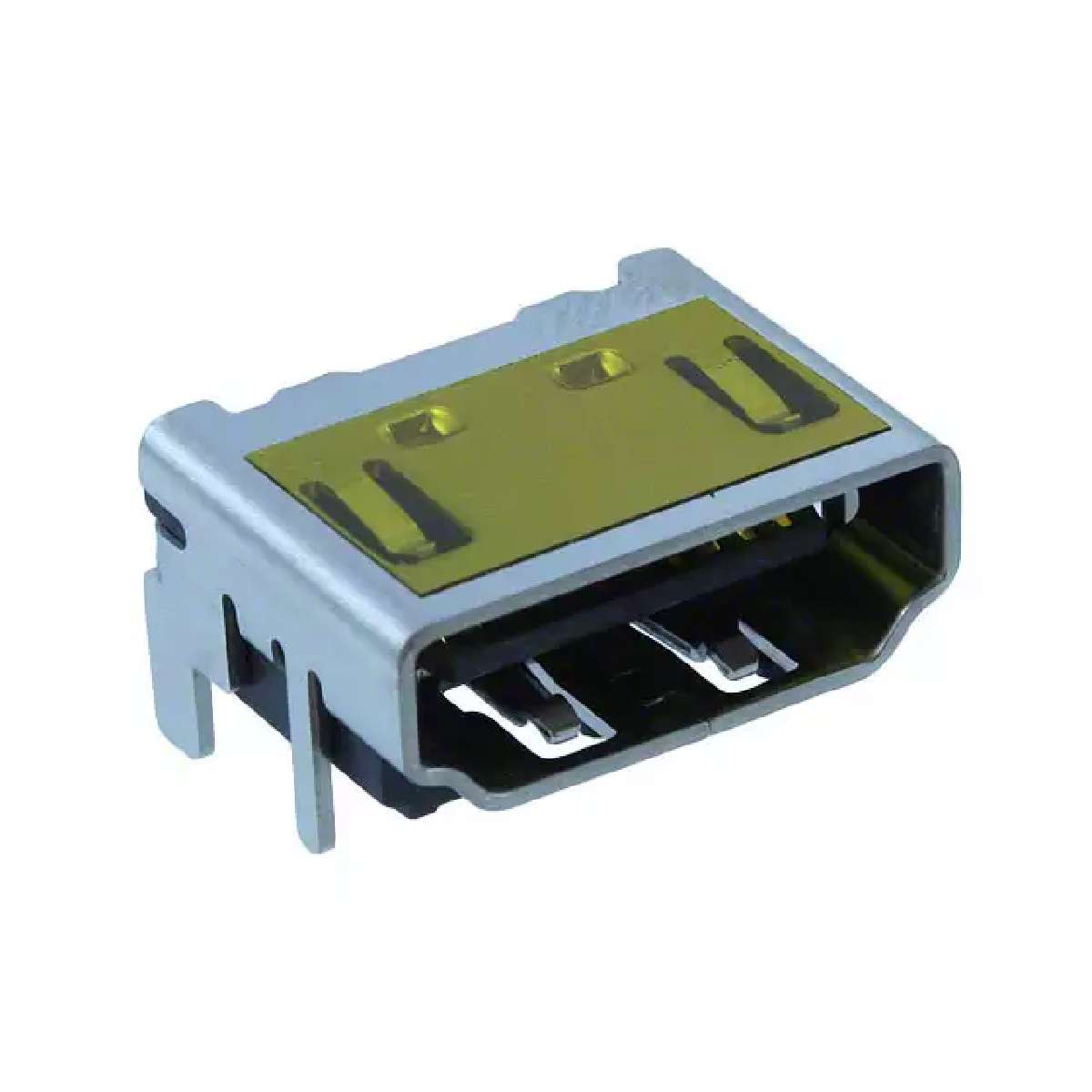

0.50毫米（ 0.020 “ ）间距HDMI插座，直角，通孔贝壳片长度2.20毫米（ 0.087 ” ）没有酒窝 0.50mm .020" Pitch HDMI Receptacle, Right Angle, Through Hole Shell Tab Length 2.20mm .087" without Dimple

This hdmi audio and video connector from can be adopted in any design which needs a peripheral audio and video device connected to it. This RCP connector"s 19 contacts that are made out of copper alloy and plated with gold over nickel. This connector has a single port. It has a right angle body orientation. It has a receptacle type gender. It has a maximum voltage rating of 40 VDC. Its pitch is 0.5 mm. This device has a maximum current rating of 0.5 A/contact. 0471518131 is housed in thermoplastic. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This part has an operating temperature range of -20 °C to 85 °C. This product is 15.7 mm long, 6.2 mm tall and 12.15 mm deep. Its 19 terminals use the solder termination method.
