0022303053

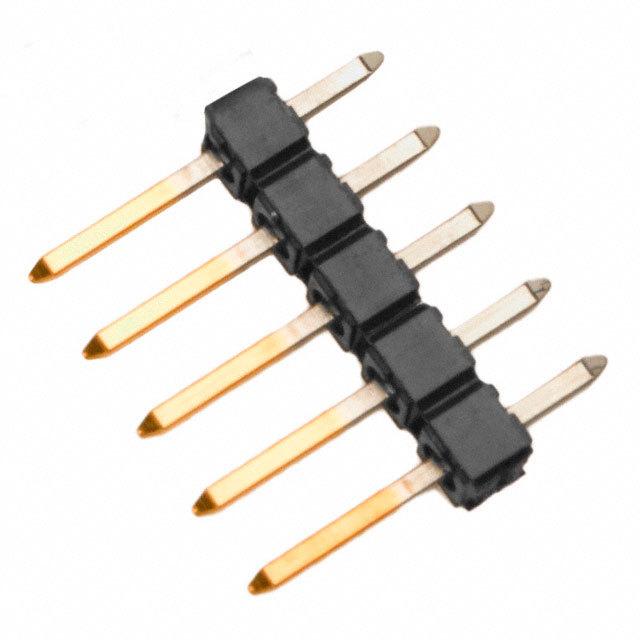

0022303053图片1
0022303053图片2
0022303053概述

Conn Unshrouded Header HDR 5POS 2.54mm Solder ST Thru-Hole KK® Bag

针座 通孔 5 位置 0.100"(2.54mm)


得捷:
CONN HEADER VERT 5POS 2.54MM


艾睿:
Use this unshrouded 0022303053 header connector from Molex where IDC ribbon cables are used. This HDR connector&s;s 5 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a header type gender. It has a straight body orientation. This is a 1-row connector. It has a maximum voltage rating of 250 VDC|250VAC. Its pitch is 2.54 mm. This device has a maximum current rating of 4 A/contact. It uses the solder termination method. This connector has an operating temperature of 0 to 75 °C. This product is 12.7 mm long, 12.58 mm tall and 2.49 mm deep. 0022303053 is housed in black nylon.


0022303053中文资料参数规格
技术参数

触点数 5

极性 Male

排数 1

针脚数 5

额定电流Max 4A/触头

工作温度Max 75 ℃

工作温度Min 0 ℃

接触电阻Max 20 mΩ

封装参数

安装方式 Through Hole

外形尺寸

高度 12.58 mm

物理参数

颜色 Black

其他

产品生命周期 Unknown

包装方式 Bulk

制造应用 汽车,通用,医疗,电信

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0022303053
型号: 0022303053
制造商: Molex 莫仕
描述:Conn Unshrouded Header HDR 5POS 2.54mm Solder ST Thru-Hole KK® Bag
