0190030047

0190030047图片1
0190030047图片2
0190030047图片3

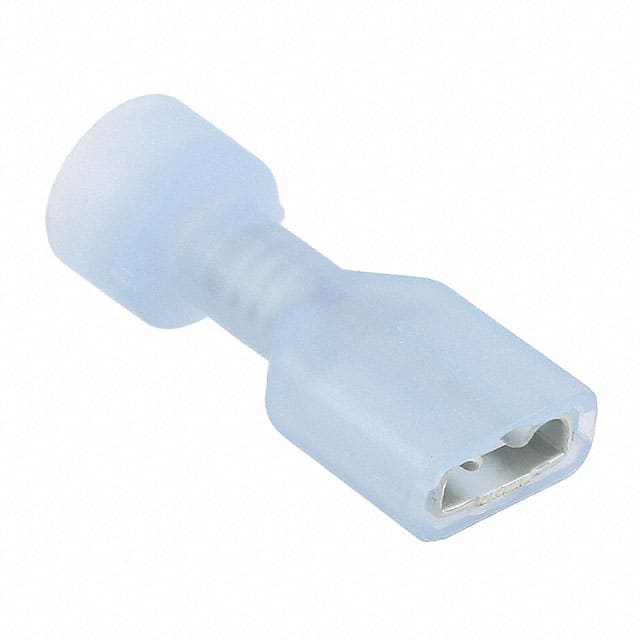

0190030047图片4
0190030047概述

InsulKrimp ™快速断开,女, 14-16 ( 2.00-1.30 ) ,盒,标签6.35毫米( .250“ )× 0.81毫米( .032 ” ) InsulKrimp™ Quick Disconnect, Female, for 14-16 2.00-1.30, Box, Tab 6.35mm.250" x 0.81mm .032"

Create a connection between two terminal blocks by using this quick disconnect terminal wire terminal from . It has a female type gender. Its wire is 14-16 AWG. This product is 24.2 mm long and 9.7 mm. This wire terminal has an operating temperature of -65 to 105 °C.


得捷:
CONN QC RCPT 14-16AWG 0.250


立创商城:
0190030047


艾睿:
Create a connection between two terminal blocks by using this quick disconnect terminal 0190030047 wire terminal from Molex. It has a female type gender. Its wire is 14-16 AWG. This product is 24.2 mm long and 9.7 mm. This wire terminal has an operating temperature of -65 to 105 °C.


Chip1Stop:
Quick Disconnect Terminal 14-16AWG F 24.2mm 9.7mm Tin Loose Piece


Verical:
Quick Disconnect Terminal 14-16AWG Brass Blue F 24.2mm Tin InsulKrimp™ Bag


0190030047中文资料参数规格
技术参数

线规 14AWG ~ 16AWG

额定电流Max 15 A

工作温度Max 105 ℃

工作温度Min -65 ℃

额定电压Max 600 V

封装参数

封装 -

外形尺寸

长度 24.2 mm

宽度 9.7 mm

封装 -

物理参数

颜色 Blue

触点材质 Brass

其他

产品生命周期 Unknown

包装方式 Bag

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

海关信息

ECCN代码 EAR99

数据手册

在线购买0190030047
型号: 0190030047
制造商: Molex 莫仕
描述:InsulKrimp ™快速断开,女, 14-16 ( 2.00-1.30 ) ,盒,标签6.35毫米( .250“ )× 0.81毫米( .032 ” ) InsulKrimp™ Quick Disconnect, Female, for 14-16 2.00-1.30, Box, Tab 6.35mm.250" x 0.81mm .032"
