0740602504

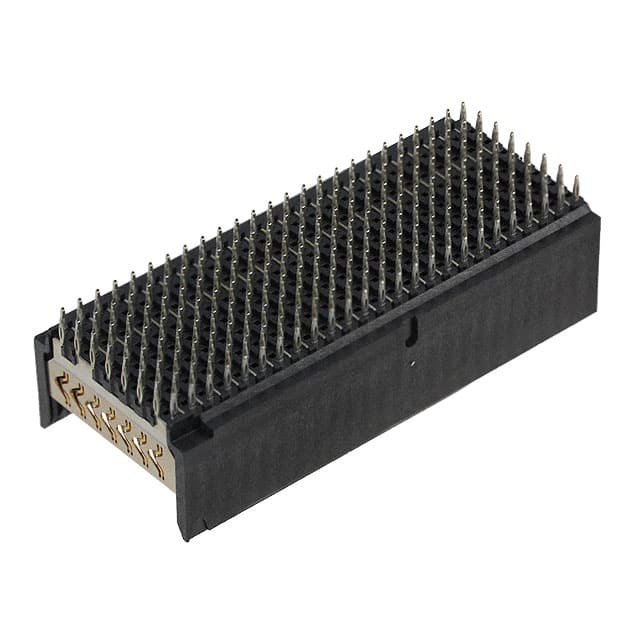

2.00毫米（ .079 “ ）间距VHDM®板对板背板头，垂直， 8 RowOpen信号模块， 200电路引脚长度5.15毫米（ .203 ” ） 2.00mm .079" Pitch VHDM® Board-to-Board Backplane Header, Vertical, 8-RowOpen Signal Module, 200 Circuits, Pin Length 5.15mm .203"

This vhdm backplane connector from will not only link multiple connectors together but also provide an interface between the devices. This HDR connector"s 200 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 120 VDC|120VAC. It has a straight body orientation. This is a 8-row connector. It has a header type gender. Its pitch is 2 mm. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 0740602504 is housed in black liquid crystal polymer. It uses the press fit termination method. This product is 50 mm long, 12.3 mm tall and 21.6 mm deep. This backplane connector has an operating temperature of -55 to 105 °C.
